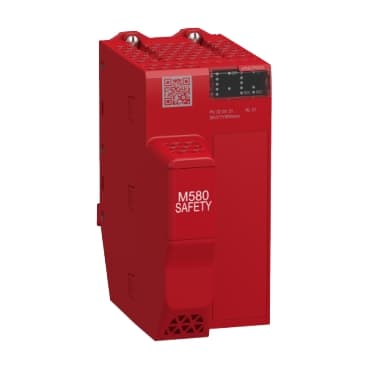

BMEP58CPROS3
Product ID:29520
Updated: 2026/7/14
Key Features
- 1Enhance safety with SIL3-certified robust processing.
- 2Manage 1024 analog and 4096 discrete I/O points.
- 3Ensure reliable operation from -25°C to 60°C.
- 4Integrate seamlessly with Modicon M580 safety processors.
- 5Save space with a compact, rack-mountable design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Processor module |
| Current consumption | 295 mA 24 V DC | MTBF reliability | 946000 H |
| marking | CE | Vibration resistance | 3 gn |
| Shock resistance | 15 gn | Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/30/EU - electromagnetic compatibility<br />2006/42/EC - machinery<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />TÜV |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 | Environmental characteristic | Hazardous location class I division 2<br />Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3 |
| Protective treatment | Conformal coating | Safety level | SIL 3<br />PL = e |
| Supply | Internal power supply via rack | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Green) download in progress (DL)<br />1 LED (Green) processor in safety mode (SRUN)<br />1 LED (Green) processor in maintenance mode (SMOD) |
| Net Weight | 1.872 lb(US) (0.849 kg) |
Specifications may be subject to change without notice
