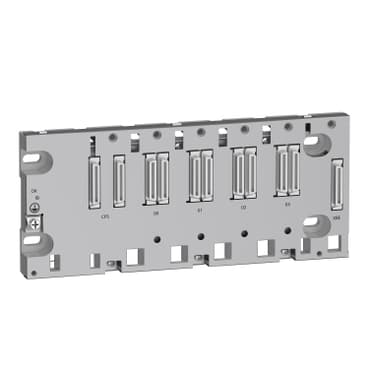

BMEXBP0400H
Product ID:29522
Updated: 2026/4/3
Key Features
- 1Withstand harsh conditions with ruggedized construction for reliable operation. 2、Integrate up to 4 slots seamlessly with Modicon X80 I/O platforms. 3、Ensure compatibility with BMXCPS power supplies and BMEP58 processors. 4、Reduce energy costs with low power consumption of only 2.8 W. 5、Protect against solids and water with IP20-rated safe enclosure.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | accessory / separate part type | Ruggedized rack |
| Product Specific Application | For severe environments | Number of slots | 4 bus X + Ethernet |
| Product Compatibility | BMXCPS power supply<br />I/O module<br />Specific application module<br />BMX processor<br />BME processor | Power consumption in W | 162 mW 3.3 V DC<br />2.8 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module | Fixing mode | By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel<br />By 4 M6 screws plate<br />By clips 35 mm symmetrical DIN rail |
| Current consumption | 49 mA 3.3 V DC<br />118 mA 24 V DC | MTBF reliability | 1588025 H |
| Net Weight | 1.554 lb(US) (0.705 kg) | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
| Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />IEC 61000-6-5, interface type 1 and type 2<br />IEC 61850-3, location G<br />IEC 60079-0 | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
Specifications may be subject to change without notice
