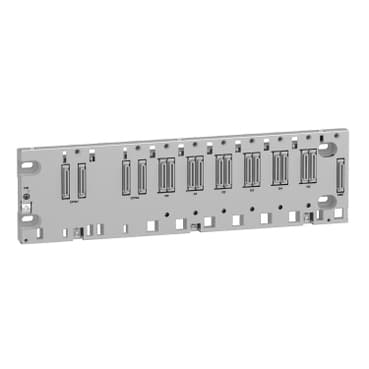

BMEXBP0602
Product ID:29523
Updated: 2026/7/14
Key Features
- 1Ensure robust performance with a high-quality, innovative design.
- 2Connect mixed modules via 6 slots with dual Ethernet and X-bus.
- 3Maintain continuous operation with redundant 24V DC power supply.
- 4Achieve 201,000 hours MTBF for exceptional system reliability.
- 5Meet EN 61131-2 and RoHS standards with an IP20 rated, mercury-free unit.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | accessory / separate part type | Rack |
| Number of slots | 6 bus X + Ethernet | Product Compatibility | Specific application module<br />BMX processor<br />I/O module<br />BME processor<br />BMXCPS4002 |
| Power consumption in W | 191 mW 3.3 V DC<br />3.6 W 24 V DC | Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel<br />By 4 M6 screws plate<br />By clips 35 mm symmetrical DIN rail | Current consumption | 152 mA 24 V DC<br />58 mA 3.3 V DC |
| MTBF reliability | 1353797 H | Net Weight | 2.25 lb(US) (1.02 kg) |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative Humidity | 5…95 % without condensation | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Specifications may be subject to change without notice
