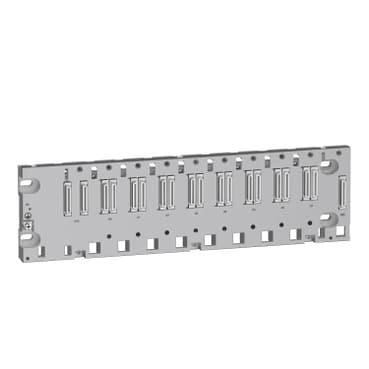

BMEXBP0800
Product ID:29525
Updated: 2026/7/14
Key Features
- 1Ensure robust performance with high-quality, innovative design.
- 2Connect mixed modules via 8 slots with dual Ethernet and X-bus.
- 3Meet EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.
- 4Achieve 1,700,000 hours MTBF for exceptional system reliability.
- 5Protect against solids larger than 12.5 mm with IP20 rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | accessory / separate part type | Rack |
| Number of slots | 8 bus X + Ethernet | Product Compatibility | I/O module<br />BMX processor<br />Specific application module<br />BMXCPS power supply<br />BME processor |
| Power consumption in W | 211 mW 3.3 V DC<br />3.9 W 24 V DC | Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel<br />By 4 M6 screws plate<br />By clips 35 mm symmetrical DIN rail | Current consumption | 64 mA 3.3 V DC<br />164 mA 24 V DC |
| MTBF reliability | 1297516 H | Net Weight | 2.34 lb(US) (1.06 kg) |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative Humidity | 5…95 % without condensation | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Specifications may be subject to change without notice
