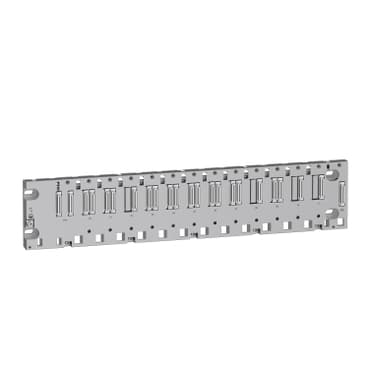

BMEXBP1200H
Product ID:29530
Updated: 2026/4/3
Key Features
- 1Expand your system with 12 modular slots for flexible device integration. 2、Ensure reliable high-speed communication via the integrated Ethernet backplane. 3、Protect components with a robust IP20-rated enclosure against dust. 4、Reduce operational costs with an energy-efficient 3.9W power consumption. 5、Simplify installation using the durable and lightweight rack design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | accessory / separate part type | Ruggedized rack |
| Product Specific Application | For severe environments | Number of slots | 8 bus X + Ethernet<br />4 bus X |
| Product Compatibility | I/O module<br />BMX processor<br />Specific application module<br />BMXCPS power supply<br />BME processor | Power consumption in W | 283 mW 3.3 V DC<br />3.9 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module | Fixing mode | By 4 M6 screws plate<br />By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel |
| Current consumption | 164 mA 24 V DC<br />86 mA 3.3 V DC | MTBF reliability | 1166108 H |
| Net Weight | 3.036 lb(US) (1.377 kg) | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
| Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />IEC 61000-6-5, interface type 1 and type 2<br />IEC 61850-3, location G<br />IEC 60079-0 | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
Specifications may be subject to change without notice
