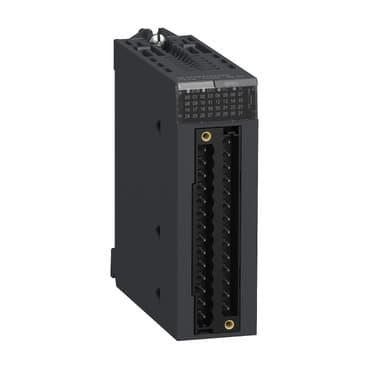

BMXAMI0810
Product ID:29534
Updated: 2026/4/3
Key Features
- 1Ensure accurate signal processing with 8 isolated channels and 15-bit resolution. 2、Operate reliably from 0 to +60°C for stability in varied conditions. 3、Protect against dust and water with a robust IP20 enclosure rating. 4、Achieve timely data retrieval with a 9 ms read cycle for all channels. 5、Configure flexibly for current (±20mA) and voltage (±10V) inputs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Analog input module |
| Electrical connection | 28 ways 1 connector | Isolation between channels | Isolated |
| Input level | High level | Analogue input number | 8 |
| Analogue input type | Current +/- 20 mA<br />Current 0...20 mA<br />Current 4...20 mA<br />Voltage +/- 10 V<br />Voltage +/- 5 V<br />Voltage 0...10 V<br />Voltage 0...5 V<br />Voltage 1...5 V | Analog/digital conversion | 16 bits |
| Analogue input resolution | 15 bits + sign | Permitted overload on inputs | +/- 30 mA 0...20 mA<br />+/- 30 mA 4...20 mA<br />+/- 30 V +/- 10 V<br />+/- 30 V +/- 5 V<br />+/- 30 V 0...10 V<br />+/- 30 V 0...5 V<br />+/- 30 V 1...5 V<br />+/- 30 mA +/- 20 mA |
| Input impedance | 10 MOhm in voltage mode<br />250 Ohm + 3.6...50 Ohm internal protective resistor in current mode | Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Type of filter | First order digital filtering | Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Nominal read cycle time | 9 ms for 8 channels | Measurement error | <= 0.1 % of full scale +/- 10 V 0...60 °C<br /><= 0.1 % of full scale +/- 5 V 0...60 °C<br /><= 0.1 % of full scale 0...10 V 0...60 °C<br /><= 0.1 % of full scale 0...5 V 0...60 °C<br /><= 0.1 % of full scale 1...5 V 0...60 °C<br /><= 0.3 % of full scale +/- 20 mA 0...60 °C<br /><= 0.3 % of full scale 0...20 mA 0...60 °C<br /><= 0.3 % of full scale 4...20 mA 0...60 °C<br />0.15 % of full scale +/- 20 mA 25 °C<br />0.15 % of full scale 0...20 mA 25 °C<br />0.15 % of full scale 4...20 mA 25 °C<br />0.075 % of full scale +/- 10 V 25 °C<br />0.075 % of full scale 0...10 V 25 °C<br />0.075 % of full scale 0...5 V 25 °C<br />0.075 % of full scale 1...5 V 25 °C<br />0.075 % of full scale +/- 5 V 25 °C |
| Temperature drift | 30 ppm/°C +/- 10 V<br />30 ppm/°C +/- 5 V<br />30 ppm/°C 0...10 V<br />30 ppm/°C 0...5 V<br />30 ppm/°C 1...5 V<br />50 ppm/°C +/- 20 mA<br />50 ppm/°C 0...20 mA<br />50 ppm/°C 4...20 mA | Minimum crosstalk attenuation | 80 dB |
| Common mode rejection | 80 dB | Digital value format | - 32768 to + 32767 in maximum user scale<br />+/- 10000 by default |
| Isolation voltage | 300 V DC between channels<br />1400 V DC between channels and ground<br />1400 V DC between channels and bus | Measurement resolution | 0.36 mV +/- 10 V<br />0.36 mV 0...10 V<br />0.36 mV 0...5 V<br />0.36 mV 1...5 V<br />0.36 mV +/- 5 V<br />1.4 µA +/- 20 mA<br />1.4 µA 0...20 mA<br />1.4 µA 4...20 mA |
| Maximum conversion value | +/- 11.4 V +/- 10 V<br />+/- 11.4 V 0...10 V<br />+/- 11.4 V 0...5 V<br />+/- 11.4 V 1...5 V<br />0...30 mA +/- 20 mA<br />0...30 mA 0...20 mA<br />0...30 mA 4...20 mA<br />0...30 mA +/- 5 V | MTBF reliability | 900000 H |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Status LED | 1 LED (Green) RUN<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) ERR<br />1 LED (Red) I/O |
| Net Weight | 0.364 lb(US) (0.165 kg) | Power consumption in W | 1.06 W 24 V DC typical<br />1.50 W 24 V DC maximum<br />0.32 W 3.3 V DC typical<br />0.48 W 3.3 V DC maximum |
| Current consumption | 150 mA 3.3 V DC<br />54 mA 24 V DC | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Product Certifications | CE<br />RCM<br />CSA<br />EAC<br />Merchant Navy<br />UL | Standards | EN/IEC 61010-2-201<br />EN/IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201 |
Specifications may be subject to change without notice
