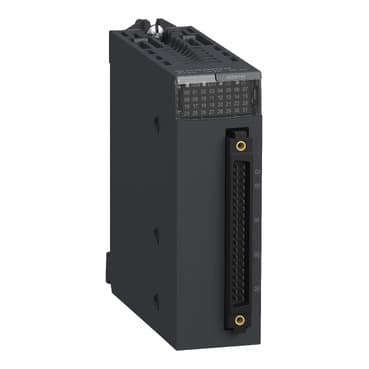

BMXART0414H
Product ID:29585
Updated: 2026/4/3
Key Features
- 1Access 4 high-resolution isolated analog inputs. 2、Withstand harsh conditions with robust environmental ratings. 3、Simplify maintenance using clear diagnostic LEDs. 4、Meet global standards with comprehensive safety certifications. 5、Reduce energy costs via efficient power consumption design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Analog input module |
| Product Specific Application | For severe environments | Electrical connection | 40 ways 1 connector |
| Isolation between channels | Isolated | Input level | Low level |
| Analogue input number | 4 | Analogue input type | Voltage +/- 1.28 V<br />Voltage +/- 160 mV<br />Voltage +/- 320 mV<br />Voltage +/- 40 mV<br />Voltage +/- 640 mV<br />Voltage +/- 80 mV<br />Resistor 400 Ohm 2 wires<br />Resistor 400 Ohm 3 wires<br />Resistor 400 Ohm 4 wires<br />Resistor 4000 Ohm 2 wires<br />Resistor 4000 Ohm 3 wires<br />Resistor 4000 Ohm 4 wires<br />Temperature probe -100...+260 °C Cu 10<br />Temperature probe -100...+450 °C Pt 100 UL/JIS<br />Temperature probe -100...+450 °C Pt 1000 UL/JIS<br />Temperature probe -200...+850 °C Pt 100 IEC<br />Temperature probe -200...+850 °C Pt 1000 IEC<br />Temperature probe -60...+180 °C Ni 100<br />Temperature probe -60...+180 °C Ni 1000<br />Thermocouple +130...+1820 °C thermocouple B<br />Thermocouple +270...+1300 °C thermocouple N<br />Thermocouple -200...+600 °C thermocouple U<br />Thermocouple -200...+760 °C thermocouple J<br />Thermocouple -200...+900 °C thermocouple L<br />Thermocouple -270...+1000 °C thermocouple E<br />Thermocouple -270...+1370 °C thermocouple K<br />Thermocouple -270...+400 °C thermocouple T<br />Thermocouple -50...+1769 °C thermocouple R<br />Thermocouple -50...+1769 °C thermocouple S |
| Analog/digital conversion | Sigma delta 16 bits | Analogue input resolution | 15 bits + sign |
| Permitted overload on inputs | +/- 7.5 V +/- 1.28 V<br />+/- 7.5 V +/- 160 mV<br />+/- 7.5 V +/- 320 mV<br />+/- 7.5 V +/- 40 mV<br />+/- 7.5 V +/- 640 mV<br />+/- 7.5 V +/- 80 mV | Common mode rejection | 120 dB 50/60 Hz |
| Differential mode rejection | 60 dB 50/60 Hz | Cold junction compensation | External by Pt100 probe |
| Type of filter | First order digital filtering | Nominal read cycle time | 200 ms with thermocouple<br />400 ms with temperature probe |
| Measurement error | +/- 0.7 °C Ni 1000 25 °C<br />+/- 2.1 °C Ni 100 25 °C<br />+/- 2.1 °C Pt 100 25 °C<br />+/- 2.1 °C Pt 1000 25 °C<br />+/- 2.7 °C thermocouple U 25 °C<br />+/- 2.8 °C thermocouple J 25 °C<br />+/- 3 °C thermocouple L 25 °C<br />+/- 3.2 °C thermocouple R 25 °C<br />+/- 3.2 °C thermocouple S 25 °C<br />+/- 3.5 °C thermocouple B 25 °C<br />+/- 3.7 °C thermocouple E 25 °C<br />+/- 3.7 °C thermocouple K 25 °C<br />+/- 3.7 °C thermocouple N 25 °C<br />+/- 3.7 °C thermocouple T 25 °C<br />+/- 4 °C Cu 10 25 °C<br />0.05 % of full scale +/- 1.28 V 25 °C<br />0.05 % of full scale +/- 160 mV 25 °C<br />0.05 % of full scale +/- 320 mV 25 °C<br />0.05 % of full scale +/- 40 mV 25 °C<br />0.05 % of full scale +/- 640 mV 25 °C<br />0.05 % of full scale +/- 80 mV 25 °C<br />0.12 % of full scale 400 Ohm 25 °C<br />0.12 % of full scale 4000 Ohm 25 °C<br />+/- 1.5 °C Ni 1000 - 25...70 °C<br />+/- 3.5 °C Ni 100 - 25...70 °C<br />+/- 3.5 °C Pt 100 - 25...70 °C<br />+/- 3.5 °C Pt 1000 - 25...70 °C<br />+/- 4.5 °C Cu 10 - 25...70 °C<br />+/- 5.5 °C thermocouple J - 25...70 °C<br />+/- 5.5 °C thermocouple L - 25...70 °C<br />+/- 5.5 °C thermocouple R - 25...70 °C<br />+/- 5.5 °C thermocouple S - 25...70 °C<br />+/- 5.5 °C thermocouple U - 25...70 °C<br />+/- 6 °C thermocouple B - 25...70 °C<br />+/- 6 °C thermocouple E - 25...70 °C<br />+/- 6 °C thermocouple K - 25...70 °C<br />+/- 6 °C thermocouple N - 25...70 °C<br />+/- 6 °C thermocouple T - 25...70 °C<br /><= 0.2 % of full scale +/- 1.28 V - 25...70 °C<br /><= 0.2 % of full scale +/- 160 mV - 25...70 °C<br /><= 0.2 % of full scale +/- 320 mV - 25...70 °C<br /><= 0.2 % of full scale +/- 40 mV - 25...70 °C<br /><= 0.2 % of full scale +/- 640 mV - 25...70 °C<br /><= 0.2 % of full scale +/- 80 mV - 25...70 °C<br /><= 0.3 % of full scale 400 Ohm - 25...70 °C<br /><= 0.3 % of full scale 4000 Ohm - 25...70 °C | Temperature drift | 25 ppm/°C 400 Ohm<br />25 ppm/°C 4000 Ohm<br />25 ppm/°C Ni 1000<br />25 ppm/°C thermocouple B<br />25 ppm/°C thermocouple E<br />25 ppm/°C thermocouple J<br />25 ppm/°C thermocouple K<br />25 ppm/°C thermocouple L<br />25 ppm/°C thermocouple N<br />25 ppm/°C thermocouple R<br />25 ppm/°C thermocouple S<br />25 ppm/°C thermocouple T<br />25 ppm/°C thermocouple U<br />30 ppm/°C +/- 1.28 V<br />30 ppm/°C +/- 160 mV<br />30 ppm/°C +/- 320 mV<br />30 ppm/°C +/- 40 mV<br />30 ppm/°C +/- 640 mV<br />30 ppm/°C +/- 80 mV<br />30 ppm/°C Cu 10<br />30 ppm/°C Ni 100<br />30 ppm/°C Pt 100<br />30 ppm/°C Pt 1000 |
| Recalibration | Internal | Detection type | Open circuit Cu 10<br />Open circuit Ni 100<br />Open circuit Ni 1000<br />Open circuit Pt 100<br />Open circuit Pt 1000<br />Open circuit thermocouple B<br />Open circuit thermocouple E<br />Open circuit thermocouple J<br />Open circuit thermocouple K<br />Open circuit thermocouple L<br />Open circuit thermocouple N<br />Open circuit thermocouple R<br />Open circuit thermocouple S<br />Open circuit thermocouple T<br />Open circuit thermocouple U |
| Maximum wiring resistance | 20 Ohm 2 wires Cu 10<br />20 Ohm 2 wires Ni 100<br />20 Ohm 2 wires Pt 100<br />20 Ohm 3 wires Cu 10<br />20 Ohm 3 wires Ni 100<br />20 Ohm 3 wires Pt 100<br />200 Ohm 2 wires Ni 1000<br />200 Ohm 2 wires Pt 1000<br />200 Ohm 3 wires Ni 1000<br />200 Ohm 3 wires Pt 1000<br />50 Ohm 4 wires Cu 10<br />50 Ohm 4 wires Ni 100<br />50 Ohm 4 wires Pt 100<br />500 Ohm 4 wires Ni 1000<br />500 Ohm 4 wires Pt 1000 | Measurement resolution | 0.1 °C Cu 10<br />0.1 °C Ni 100<br />0.1 °C Ni 1000<br />0.1 °C Pt 100<br />0.1 °C Pt 1000<br />0.1 °C thermocouple B<br />0.1 °C thermocouple E<br />0.1 °C thermocouple J<br />0.1 °C thermocouple K<br />0.1 °C thermocouple L<br />0.1 °C thermocouple N<br />0.1 °C thermocouple R<br />0.1 °C thermocouple S<br />0.1 °C thermocouple T<br />0.1 °C thermocouple U<br />1280/2exp14 mV +/- 1.28 V<br />160/2exp14 mV +/- 160 mV<br />320/2exp14 mV +/- 320 mV<br />40/2exp14 mV +/- 40 mV<br />12.5 mOhm 400 Ohm<br />125 mOhm 4000 Ohm<br />640/2exp14 mV +/- 640 mV<br />80/2exp14 mV +/- 80 mV |
| Maximum conversion value | +/- 100 % 400 Ohm<br />+/- 100 % 4000 Ohm<br />+/- 102.5 % +/- 1.28 V<br />+/- 102.5 % +/- 160 mV<br />+/- 102.5 % +/- 320 mV<br />+/- 102.5 % +/- 40 mV<br />+/- 102.5 % +/- 640 mV<br />+/- 102.5 % +/- 80 mV | MTBF reliability | 1400000 H |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Status LED | 1 LED (Green) RUN<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) ERR<br />1 LED (Red) I/O |
| Net Weight | 0.298 lb(US) (0.135 kg) | Current consumption | 150 mA 3.3 V DC |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product Certifications | IEC-Ex<br />Merchant Navy<br />UL<br />RCM<br />EAC<br />CSA<br />CE<br />ATEX |
| Standards | EN 61131-2<br />EN 61000-6-4<br />EN 61000-6-2<br />EN 61010-2-201 | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2<br />Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
