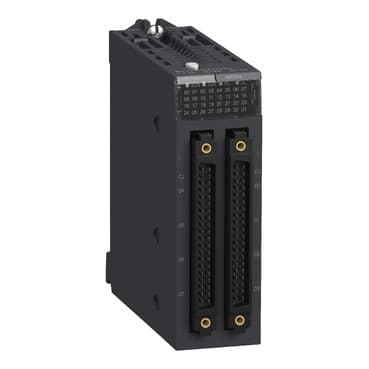

BMXART0814
Product ID:29586
Updated: 2026/4/3
Key Features
- 1Capture precise data with 15-bit high resolution. 2、Ensure reliable operation via isolated channel inputs. 3、Simplify electrical connections with a compact 40-way connector. 4、Operate reliably across a wide 0 to 60°C temperature range. 5、Meet key standards including IEC 61131-2 and UL 508.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Analog input module |
| Electrical connection | 40 ways 2 connectors | Isolation between channels | Isolated |
| Input level | Low level | Analogue input number | 8 |
| Analogue input type | Voltage +/- 1.28 V<br />Voltage +/- 160 mV<br />Voltage +/- 320 mV<br />Voltage +/- 40 mV<br />Voltage +/- 640 mV<br />Voltage +/- 80 mV<br />Resistor 400 Ohm 2 wires<br />Resistor 400 Ohm 3 wires<br />Resistor 400 Ohm 4 wires<br />Resistor 4000 Ohm 2 wires<br />Resistor 4000 Ohm 3 wires<br />Resistor 4000 Ohm 4 wires<br />Temperature probe -100...+260 °C Cu 10<br />Temperature probe -100...+450 °C Pt 100 UL/JIS<br />Temperature probe -100...+450 °C Pt 1000 UL/JIS<br />Temperature probe -200...+850 °C Pt 100 IEC<br />Temperature probe -200...+850 °C Pt 1000 IEC<br />Temperature probe -60...+180 °C Ni 100<br />Temperature probe -60...+180 °C Ni 1000<br />Thermocouple +130...+1820 °C thermocouple B<br />Thermocouple +270...+1300 °C thermocouple N<br />Thermocouple -200...+600 °C thermocouple U<br />Thermocouple -200...+760 °C thermocouple J<br />Thermocouple -200...+900 °C thermocouple L<br />Thermocouple -270...+1000 °C thermocouple E<br />Thermocouple -270...+1370 °C thermocouple K<br />Thermocouple -270...+400 °C thermocouple T<br />Thermocouple -50...+1769 °C thermocouple R<br />Thermocouple -50...+1769 °C thermocouple S | Analog/digital conversion | Sigma delta 16 bits |
| Analogue input resolution | 15 bits + sign | Permitted overload on inputs | +/- 7.5 V +/- 1.28 V<br />+/- 7.5 V +/- 160 mV<br />+/- 7.5 V +/- 320 mV<br />+/- 7.5 V +/- 40 mV<br />+/- 7.5 V +/- 640 mV<br />+/- 7.5 V +/- 80 mV |
| Common mode rejection | 120 dB 50/60 Hz | Differential mode rejection | 60 dB 50/60 Hz |
| Cold junction compensation | External by Pt100 probe | Type of filter | First order digital filtering |
| Nominal read cycle time | 400 ms with temperature probe<br />200 ms with thermocouple | Measurement error | +/- 0.7 °C Ni 1000 25 °C<br />+/- 2 °C Pt 100 0...60 °C<br />+/- 2 °C Pt 1000 0...60 °C<br />+/- 2.1 °C Ni 100 25 °C<br />+/- 2.1 °C Pt 100 25 °C<br />+/- 2.1 °C Pt 1000 25 °C<br />+/- 2.7 °C thermocouple U 25 °C<br />+/- 2.8 °C thermocouple J 25 °C<br />+/- 3 °C Ni 100 0...60 °C<br />+/- 3 °C thermocouple L 25 °C<br />+/- 3.2 °C thermocouple R 25 °C<br />+/- 3.2 °C thermocouple S 25 °C<br />+/- 3.5 °C thermocouple B 25 °C<br />+/- 3.7 °C thermocouple E 25 °C<br />+/- 3.7 °C thermocouple K 25 °C<br />+/- 3.7 °C thermocouple N 25 °C<br />+/- 3.7 °C thermocouple T 25 °C<br />+/- 4 °C Cu 10 0...60 °C<br />+/- 4 °C Cu 10 25 °C<br />+/- 4.5 °C thermocouple J 0...60 °C<br />+/- 4.5 °C thermocouple L 0...60 °C<br />+/- 4.5 °C thermocouple R 0...60 °C<br />+/- 4.5 °C thermocouple S 0...60 °C<br />+/- 4.5 °C thermocouple U 0...60 °C<br />+/- 5 °C thermocouple B 0...60 °C<br />+/- 5 °C thermocouple E 0...60 °C<br />+/- 5 °C thermocouple K 0...60 °C<br />+/- 5 °C thermocouple N 0...60 °C<br />+/- 5 °C thermocouple T 0...60 °C<br /><= 0.15 % of full scale +/- 1.28 V 0...60 °C<br /><= 0.15 % of full scale +/- 160 mV 0...60 °C<br /><= 0.15 % of full scale +/- 320 mV 0...60 °C<br /><= 0.15 % of full scale +/- 640 mV 0...60 °C<br /><= 0.15 % of full scale +/- 80 mV 0...60 °C<br /><= 0.2 % of full scale 4000 Ohm 0...60 °C<br />0.05 % of full scale +/- 1.28 V 25 °C<br />0.05 % of full scale +/- 160 mV 25 °C<br />0.05 % of full scale +/- 320 mV 25 °C<br />0.05 % of full scale +/- 40 mV 25 °C<br />0.05 % of full scale +/- 640 mV 25 °C<br />0.05 % of full scale +/- 80 mV 25 °C<br />0.12 % of full scale 400 Ohm 25 °C<br />0.12 % of full scale 4000 Ohm 25 °C<br /><= 0.2 % of full scale +/- 40 mV 0...60 °C<br /><= 0.3 % of full scale 400 Ohm 0...60 °C<br />1.3 °C Ni 1000 0...60 °C |
| Temperature drift | 25 ppm/°C 400 Ohm<br />25 ppm/°C 4000 Ohm<br />25 ppm/°C Ni 1000<br />25 ppm/°C thermocouple B<br />25 ppm/°C thermocouple E<br />25 ppm/°C thermocouple J<br />25 ppm/°C thermocouple K<br />25 ppm/°C thermocouple L<br />25 ppm/°C thermocouple N<br />25 ppm/°C thermocouple R<br />25 ppm/°C thermocouple S<br />25 ppm/°C thermocouple T<br />25 ppm/°C thermocouple U<br />30 ppm/°C +/- 1.28 V<br />30 ppm/°C +/- 160 mV<br />30 ppm/°C +/- 320 mV<br />30 ppm/°C +/- 40 mV<br />30 ppm/°C +/- 640 mV<br />30 ppm/°C +/- 80 mV<br />30 ppm/°C Cu 10<br />30 ppm/°C Ni 100<br />30 ppm/°C Pt 100<br />30 ppm/°C Pt 1000 | Recalibration | Internal |
| Detection type | Open circuit Cu 10<br />Open circuit Ni 100<br />Open circuit Ni 1000<br />Open circuit Pt 100<br />Open circuit Pt 1000<br />Open circuit thermocouple B<br />Open circuit thermocouple E<br />Open circuit thermocouple J<br />Open circuit thermocouple K<br />Open circuit thermocouple L<br />Open circuit thermocouple N<br />Open circuit thermocouple R<br />Open circuit thermocouple S<br />Open circuit thermocouple T<br />Open circuit thermocouple U | Maximum wiring resistance | 20 Ohm 2 wires Cu 10<br />20 Ohm 2 wires Ni 100<br />20 Ohm 2 wires Pt 100<br />20 Ohm 3 wires Cu 10<br />20 Ohm 3 wires Ni 100<br />20 Ohm 3 wires Pt 100<br />200 Ohm 2 wires Ni 1000<br />200 Ohm 2 wires Pt 1000<br />200 Ohm 3 wires Ni 1000<br />200 Ohm 3 wires Pt 1000<br />50 Ohm 4 wires Cu 10<br />50 Ohm 4 wires Ni 100<br />50 Ohm 4 wires Pt 100<br />500 Ohm 4 wires Ni 1000<br />500 Ohm 4 wires Pt 1000 |
| Measurement resolution | 0.1 °C Cu 10<br />0.1 °C Ni 100<br />0.1 °C Ni 1000<br />0.1 °C Pt 100<br />0.1 °C Pt 1000<br />0.1 °C thermocouple B<br />0.1 °C thermocouple E<br />0.1 °C thermocouple J<br />0.1 °C thermocouple K<br />0.1 °C thermocouple L<br />0.1 °C thermocouple N<br />0.1 °C thermocouple R<br />0.1 °C thermocouple S<br />0.1 °C thermocouple T<br />0.1 °C thermocouple U<br />1280/2exp14 mV +/- 1.28 V<br />160/2exp14 mV +/- 160 mV<br />320/2exp14 mV +/- 320 mV<br />40/2exp14 mV +/- 40 mV<br />12.5 mOhm 400 Ohm<br />125 mOhm 4000 Ohm<br />640/2exp14 mV +/- 640 mV<br />80/2exp14 mV +/- 80 mV | Maximum conversion value | +/- 100 % 400 Ohm<br />+/- 100 % 4000 Ohm<br />+/- 102.5 % +/- 1.28 V<br />+/- 102.5 % +/- 160 mV<br />+/- 102.5 % +/- 320 mV<br />+/- 102.5 % +/- 40 mV<br />+/- 102.5 % +/- 640 mV<br />+/- 102.5 % +/- 80 mV |
| MTBF reliability | 900000 H | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
| Status LED | 1 LED (Green) RUN<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) ERR<br />1 LED (Red) I/O | Net Weight | 0.364 lb(US) (0.165 kg) |
| Current consumption | 150 mA 3.3 V DC<br />50 mA 24 V DC | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Product Certifications | CE<br />EAC<br />UL<br />CSA<br />Merchant Navy<br />RCM | Standards | IEC 61131-2<br />IEC 61000-6-4<br />IEC 61000-6-2<br />EN 61010-2-201 |
| Environmental characteristic | 3C3 IEC 60721-3-3<br />3C4 IEC 60721-3-3 |
Specifications may be subject to change without notice
