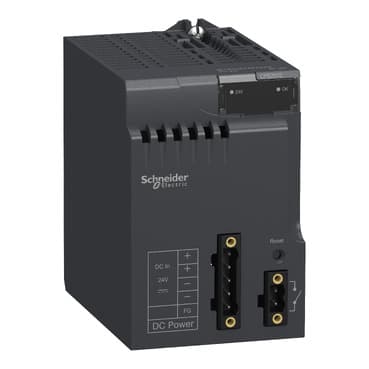

BMXCPS2010
Product ID:29589
Updated: 2026/7/15
Key Features
- 1Operate within a wide 18-31.2V DC input range.
- 2Protect your system with internal fuse and overload protection.
- 3Supply 16.8W for 24V DC I/O modules and processor.
- 4Resist vibrations up to 3 gn and shocks up to 30 gn.
- 5Integrate seamlessly into Modicon X80 rack systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 | Primary Voltage | 24 V isolated |
| Supply circuit type | DC | Secondary power | 16.8 W 24 V DC I/O module power supply and processor<br />8.3 W 3.3 V DC I/O module logic power supply |
| Primary voltage limit | 18...31.2 V | Input current | 1 A 24 V |
| Inrush current | 30 A 24 V | I²t on activation | 0.6 A².s 24 V |
| It on activation | 0.15 A.s 24 V | MTBF reliability | 4886000 H |
| Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit, 24 V sensor power supply<br />Overvoltage protection secondary circuit, 24 V sensor power supply<br />Short-circuit protection secondary circuit, 24 V sensor power supply | Current at secondary voltage | 0.7 A 24 V DC I/O module power supply and processor<br />2.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) rack voltage OK |
| Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth, 24 V DC input sensor |
| Maximum cable distance between devices | 65.6 ft (20 m) power supply cable copper 0.002 in² (1.5 mm²)<br />98.4 ft (30 m) power supply cable copper 0.004 in² (2.5 mm²) | Insulation resistance | >= 10 MOhm primary/ground<br />>= 10 MOhm primary/secondary |
| Net Weight | 0.64 lb(US) (0.29 kg) | Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/ground<br />1500 V primary/secondary | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | TC | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
