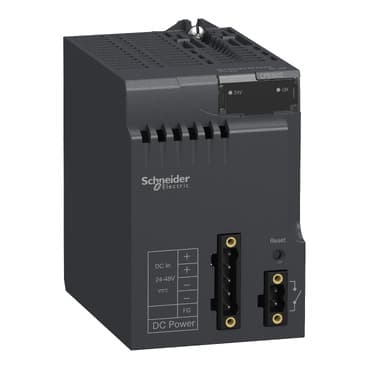

BMXCPS3020
Product ID:29590
Updated: 2026/4/3
Key Features
- 1Provide reliable power for Modicon M340 PLC systems. 2、Operate with 24-48V DC input for wide compatibility. 3、Handle high inrush currents up to 60A at 48V. 4、Feature IP20 enclosure and multiple safety protections. 5、Withstand harsh industrial vibrations and shocks.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 | Primary Voltage | 24...48 V isolated |
| Supply circuit type | DC | Secondary power | 15 W 3.3 V DC I/O module logic power supply<br />31.2 W 24 V DC I/O module power supply and processor |
| Primary voltage limit | 18...62.4 V | Input current | 0.83 A 48 V<br />1.65 A 24 V |
| Inrush current | 30 A 24 V<br />60 A 48 V | I²t on activation | 1 A².s 24 V<br />3 A².s 48 V |
| It on activation | 0.2 A.s 24 V<br />0.3 A.s 48 V | MTBF reliability | 4600000 H |
| Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit, 24 V sensor power supply<br />Overvoltage protection secondary circuit, 24 V sensor power supply<br />Short-circuit protection secondary circuit, 24 V sensor power supply | Current at secondary voltage | 1.3 A 24 V DC I/O module power supply and processor<br />4.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) rack voltage OK |
| Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth |
| Maximum cable distance between devices | 32.8 ft (10 m) power supply cable copper 0.002 in² (1.5 mm²)<br />49.2 ft (15 m) power supply cable copper 0.004 in² (2.5 mm²) | Insulation resistance | >= 10 MOhm primary/ground<br />>= 10 MOhm primary/secondary |
| Net Weight | 0.75 lb(US) (0.34 kg) | Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/ground<br />1500 V primary/secondary | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | TC | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
