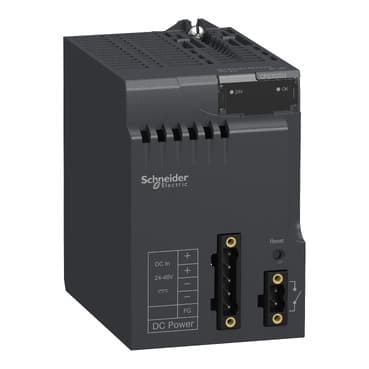

BMXCPS3020H
Product ID:29591
Updated: 2026/4/3
Key Features
- 1Provide 830mA high current for demanding industrial loads. 2、Ensure safe operation with isolated 24-48V DC primary voltage. 3、Guarantee seamless integration for Modicon X80 Series systems. 4、Operate reliably in harsh conditions with an extended temperature range. 5、Meet environmental standards with RoHS and phthalates compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 | Product Specific Application | For severe environments |
| Primary Voltage | 24...48 V isolated | Supply circuit type | DC |
| Secondary power | 15 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply<br />31.2 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor<br />11.3 W 3.3 V DC -13…158 °F (-25…70 °C) I/O module logic power supply<br />23.4 W 24 V DC -13…158 °F (-25…70 °C) I/O module power supply and processor | Primary voltage limit | 18...62.4 V |
| Input current | 0.83 A 48 V<br />1.65 A 24 V | Inrush current | 30 A 24 V<br />60 A 48 V |
| I²t on activation | 1 A².s 24 V<br />3 A².s 48 V | It on activation | 0.2 A.s 24 V<br />0.3 A.s 48 V |
| MTBF reliability | 4600000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit, 24 V sensor power supply<br />Overvoltage protection secondary circuit, 24 V sensor power supply<br />Short-circuit protection secondary circuit, 24 V sensor power supply |
| Current at secondary voltage | 1.3 A 24 V DC I/O module power supply and processor<br />4.5 A 3.3 V DC I/O module logic power supply | Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (Green) rack voltage OK | Control Type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth | Maximum cable distance between devices | 32.8 ft (10 m) power supply cable copper 0.002 in² (1.5 mm²)<br />49.2 ft (15 m) power supply cable copper 0.004 in² (2.5 mm²) |
| Insulation resistance | >= 10 MOhm primary/ground<br />>= 10 MOhm primary/secondary | Net Weight | 0.75 lb(US) (0.34 kg) |
| Immunity to microbreaks | 1 ms | Dielectric strength | 1500 V primary/ground<br />1500 V primary/secondary |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
| Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
