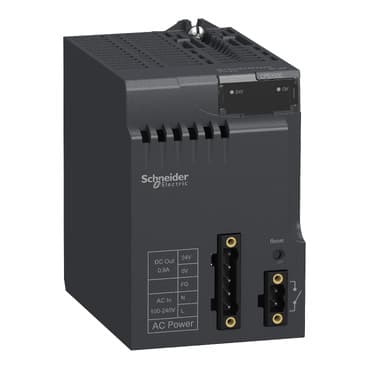

BMXCPS3500
Product ID:29592
Updated: 2026/4/3
Key Features
- 1Deliver reliable and stable 24VDC output for critical sensors. 2、Accept a wide 100-240 VAC input range for global use. 3、Achieve high conversion efficiency to reduce energy waste. 4、Ensure safety with IP20 protection against dust indoors. 5、Simplify installation via cage mount and DIN rail.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 | Primary Voltage | 100...240 V |
| Supply circuit type | AC | Secondary power | 15 W 3.3 V DC I/O module logic power supply<br />31.2 W 24 V DC I/O module power supply and processor<br />21.6 W 24 V DC sensor power supply |
| Primary voltage limit | 85...264 V | Network Frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz | Apparent power | 0.12 kVA |
| Input current | 0.52 A 240 V<br />1.04 A 115 V | Inrush current | 30 A 120 V<br />60 A 240 V |
| I²t on activation | 1 A².s 120 V<br />3 A².s 240 V | It on activation | 0.05 A.s 120 V<br />0.07 A.s 240 V |
| MTBF reliability | 4300000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
| Current at secondary voltage | 0.9 A 24 V DC sensor power supply<br />1.3 A 24 V DC I/O module power supply and processor<br />4.5 A 3.3 V DC I/O module logic power supply | Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (Green) rack voltage OK<br />1 LED (Green) sensor voltage | Control Type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth, 24 V DC input sensor | Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary |
| Net Weight | 0.79 lb(US) (0.36 kg) | Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground<br />500 V 24 V sensor output/ground | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | TC | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
