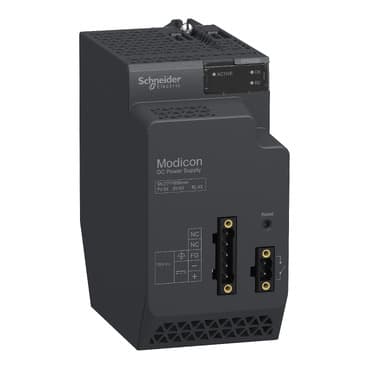

BMXCPS3522H
Product ID:29595
Updated: 2026/4/3
Key Features
- 1Provide dual power sources for continuous operation in severe environments. 2、Ensure long-term reliability with an MTBF of 830,000 hours. 3、Access advanced diagnostics via network for real-time monitoring. 4、Operate reliably in temperatures from -25°C to 70°C. 5、Protect your system with internal fuse and comprehensive circuit safeguards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Power supply module |
| backplane compatibility | All backplane | Product Specific Application | For severe environments |
| advanced diagnostics available via network | Temperature sensing<br />Redundancy information<br />Redundancy test<br />Uptime duration<br />Remaining lifetime | Primary Voltage | 125 V |
| Supply circuit type | DC | Secondary power | 18 W 3.3 V DC -13…158 °F (-25…70 °C) I/O module logic power supply<br />40 W 24 V DC -13…158 °F (-25…70 °C) I/O module power supply and processor if 3.3 V not loaded |
| Primary voltage limit | 100...150 V | Input current | 600 mA 125 V |
| Inrush current | 60 A 125 V | I²t on activation | 2.5 A².s 125 V |
| It on activation | 0.09 A.s 125 V | MTBF reliability | 830000 H |
| Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit | Current at secondary voltage | 1.67 A 24 V DC I/O module power supply and processor<br />5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status |
| Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth |
| Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary | Net Weight | 1.34 lb(US) (0.61 kg) |
| Immunity to microbreaks | 1 ms | Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy | Standards | EN 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G |
| Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative humidity | 10…95 % without condensation |
| Protective treatment | Conformal coating |
