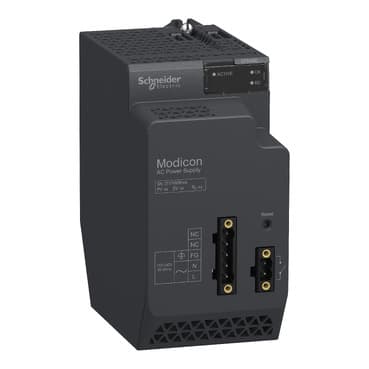

BMXCPS4002
Product ID:29598
Updated: 2026/7/15
Key Features
- 1Deliver stable power with 18W at 3.3VDC and 40W at 24VDC.
- 2Support a wide input voltage range from 100 to 240VAC.
- 3Access advanced diagnostics via network for temperature and lifetime.
- 4Enable redundancy testing for backup support during failures.
- 5Protect your system with overload and short-circuit safety features.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Power supply module |
| backplane compatibility | All backplane | advanced diagnostics available via network | Temperature sensing<br />Redundancy test<br />Uptime duration<br />Redundancy information<br />Remaining lifetime |
| Primary Voltage | 100...240 V | Supply circuit type | AC |
| Secondary power | 18 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply<br />40 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor if 3.3 V not loaded | Primary voltage limit | 85...264 V |
| Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
| Apparent power | 0.13 kVA | Input current | 0.55 A 240 V<br />1.01 A 115 V |
| Inrush current | 30 A 120 V<br />60 A 240 V | I²t on activation | 1 A².s 115 V<br />4 A².s 230 V |
| It on activation | 0.1 A.s 115 V<br />0.15 A.s 230 V | MTBF reliability | 792000 H |
| Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit | Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply<br />1.67 A 24 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status |
| Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth |
| Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary | Net Weight | 1.12 lb(US) (0.51 kg) |
| Immunity to microbreaks | 1 ms | Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground<br />500 V 24 V sensor output/ground |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | 3C3 EN/IEC 60721-3-3<br />3C4 EN/IEC 60721-3-3 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | TC<br />Conformal coating Humiseal 1A33 | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
