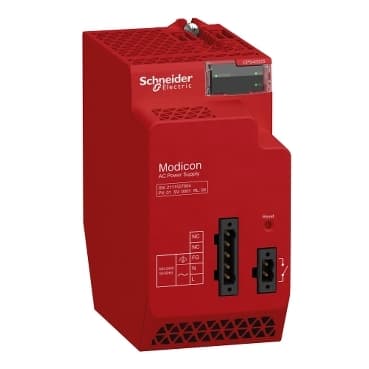

BMXCPS4002S
Product ID:29600
Updated: 2026/4/3
Key Features
- 1Provide dual power sources for uninterrupted critical process operation. 2、Accommodate various input levels with a 100-240 VAC wide voltage range. 3、Deliver stable 40W at 24VDC and 18W at 3.3VDC power efficiently. 4、Enable proactive maintenance with network monitoring and status diagnostics. 5、Protect the secondary circuit with overload, overvoltage, and short-circuit safeguards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Power supply module |
| backplane compatibility | All backplane | advanced diagnostics available via network | Redundancy information<br />Redundancy test<br />Temperature sensing<br />Remaining lifetime<br />Uptime duration |
| Primary Voltage | 100...240 V | Supply circuit type | AC |
| Secondary power | 15 W 3.3 V DC -13…140 °F (-25…60 °C) I/O module logic power supply<br />40 W 24 V DC -13…140 °F (-25…60 °C) I/O module power supply and processor if 3.3 V not loaded | Primary voltage limit | 85...264 V |
| Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
| Apparent power | 0.13 kVA | Input current | 0.55 A 230 V<br />1.1 A 115 V |
| Inrush current | 30 A 115 V<br />60 A 230 V | I²t on activation | 1 A².s 115 V<br />4 A².s 230 V |
| It on activation | 0.1 A.s 115 V<br />0.15 A.s 230 V | MTBF reliability | 792000 H |
| Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit | Current at secondary voltage | 4.5 A 3.3 V DC I/O module logic power supply<br />1.67 A 24 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status |
| Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth |
| Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary | Net Weight | 1.12 lb(US) (0.51 kg) |
| Immunity to microbreaks | 10 ms | Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground<br />500 V 24 V sensor output/ground |
| Vibration resistance | 3 gn | Shock resistance | 15 gn |
| IP Degree of Protection | IP20 | Directives | 2014/30/EU - electromagnetic compatibility<br />2006/42/EC - machinery<br />2014/34/EU - ATEX directive |
| Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />TÜV | Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2<br />Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
