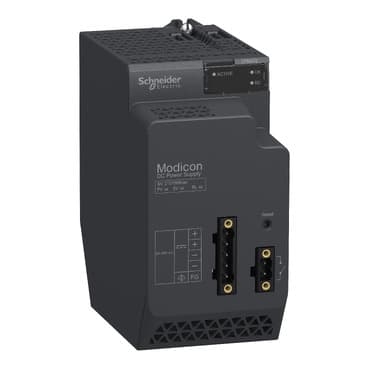

BMXCPS4022
Product ID:29601
Updated: 2026/7/15
Key Features
- 1Ensure continuous operation with dual redundant power sources.
- 2Provide flexible 24 to 48 VDC input compatibility.
- 3Deliver high 40W power output for demanding applications.
- 4Monitor system health with real-time network diagnostics.
- 5Protect your investment with robust IP20 and fuse protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Power supply module |
| backplane compatibility | All backplane | advanced diagnostics available via network | Redundancy information<br />Redundancy test<br />Temperature sensing<br />Remaining lifetime<br />Uptime duration |
| Primary Voltage | 24...48 V | Supply circuit type | DC |
| Secondary power | 18 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply<br />40 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor if 3.3 V not loaded | Primary voltage limit | 18...62.4 V |
| Input current | 1.9 A 24 V<br />1 A 48 V | Inrush current | 60 A 48 V<br />60 A 24 V |
| I²t on activation | 0.4 A².s 24 V<br />1.9 A².s 48 V | It on activation | 0.05 A.s 24 V<br />0.08 A.s 48 V |
| MTBF reliability | 752000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
| Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply<br />1.67 A 24 V DC I/O module power supply and processor | Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status | Control Type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth | Maximum cable distance between devices | 32.8 ft (10 m)<br />49.2 ft (15 m) |
| Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary | Net Weight | 1.79 lb(US) (0.81 kg) |
| Immunity to microbreaks | 1 ms | Dielectric strength | 1500 V primary/ground<br />1500 V primary/secondary |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | 3C3 IEC 60721-3-3<br />3C4 IEC 60721-3-3 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 10…95 % without condensation |
Specifications may be subject to change without notice
