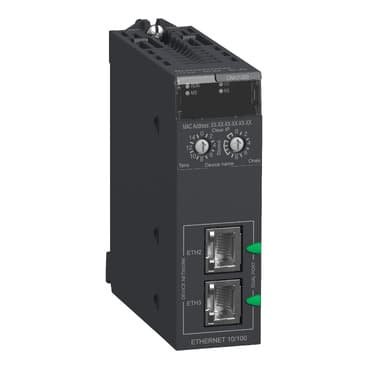

BMXCRA31200
Product ID:29604
Updated: 2026/7/15
Key Features
- 1Withstand harsh industrial environments with a robust, compact design.
- 2Ensure reliable operation from 0 to 60°C with IP20 protection.
- 3Integrate seamlessly using the EtherNet/IP industrial protocol.
- 4Apply across water, wastewater, and mining industries.
- 5Meet global standards including CE, UL, and CSA certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Range Compatibility | Modicon M580<br />Modicon Quantum |
| Product or Component Type | I/O expansion module | Device Application | X80 Ethernet RIO drop adaptor |
| Product Specific Application | For remote I/O modules | Bus type | Bus X across the remote backplane |
| Number of port | 2 | Integrated connection type | 2 port Ethernet RIO Network (RSTP) |
| Communication Network Type | IPv4 (internet protocol) | communication port protocol | EtherNet/IP |
| Communication Service | Ethernet/IP adapter<br />RSTP (Ring topology support)<br />Ethernet RIO network<br />Quality of Service (QoS)<br />CIP Explicit messaging (server)<br />Modbus TCP server for module diagnostics<br />DHCP client<br />TFTP client<br />FTP client<br />FDR client<br />SNTP client<br />SNMP agent | Cybersecurity | Syslog protocol support |
| Connector Type | 2 RJ45 | Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Transmission Rate | 10/100 Mbit/s | Port Ethernet | 10/100BASE-TX |
| Function Available | CCOTF (configuration change on the fly)<br />Input data is collected and published to the remote I/O head adaptor<br />Output modules are updated with the data received from remote I/O head adaptor<br />Diagnostics for remote I/O devices (Device DDT)<br />I/O extension rack | Data recording | 10 ms time stamps |
| Topology | Ring | Local signalling | for module active (RUN) 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red)<br /> for Ethernet link diagnostics (STS) 1 LED (green) |
| current consumption | 1200 mA | Input voltage | 3.3 V DC |
| Product compatibility | 0…128 discrete channel<br />0…16 analog channel | Module format | Standard |
| Net Weight | 0.496 lb(US) (0.225 kg) | Maximum altitude transport | 9842.5 ft (3000 m) |
| Relative Humidity | 95 % without condensation | Fixing Mode | By screws |
| Mounting Mode | Rack-mounted | Width | 1.3 in (32 mm) |
| Height | 3.9 in (100 mm) | Depth | 3.4 in (87.5 mm) |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G | Environmental characteristic | Standard environment |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Operating altitude | <= 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
