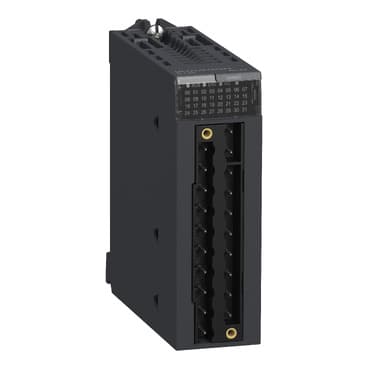

BMXDAI0805
Product ID:29607
Updated: 2026/7/15
Key Features
- 1Utilize 8 isolated inputs for versatile industrial automation.
- 2Support a wide 200-240V AC voltage range.
- 3Ensure reliable operation with >10 MOhm insulation.
- 4Achieve fast response with 10ms activation filtering.
- 5Benefit from a durable, lightweight 0.12 kg design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
| Discrete input number | 8 | Discrete input type | Isolated |
| input type | Capacitive | Discrete input voltage | 200...240 V AC |
| Discrete input current | 10.4 mA | Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2<br />With 2-wire/3-wire proximity sensors IEC 61131-2 Type 2 |
| Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
| Sensor power supply | 170...264 V | Current state 1 guaranteed | >= 6 mA |
| Current state 0 guaranteed | <= 4 mA | input impedance | 21000 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 4.73 W |
| AC activation response time | 10 ms | AC deactivation response time | 20 ms |
| Typical current consumption | 76 mA 3.3 V DC<br />93.6 mA 24 V DC | Current consumption | <= 126 mA 3.3 V DC<br /><= 154.8 mA 24 V DC |
| MTBF reliability | 1700000 H | Protection type | 1 external fuse per group of channel 0.5 A fast blow |
| Voltage detection threshold | > 164 V AC sensor OK<br />< 80 V AC sensor fault | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
| Net Weight | 0.26 lb(US) (0.12 kg) | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Dielectric strength | 1500 V AC 50/60 Hz 1 min |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
