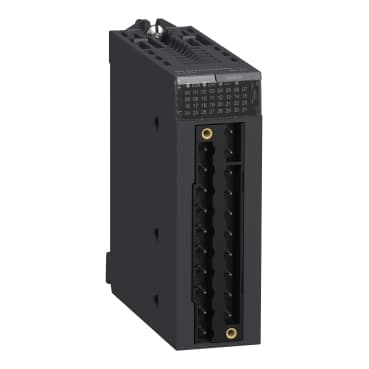

BMXDAI0814
Product ID:29608
Updated: 2026/7/15
Key Features
- 1Support 8 isolated inputs for reliable signal processing.
- 2Operate within 100-120V AC for application flexibility.
- 3Feature 1.7M hours MTBF for long-term reliability.
- 4Consume only 90 mA at 3.3V DC for energy efficiency.
- 5Include status LEDs for easy monitoring and diagnostics.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
| Discrete input number | 8 | Discrete input type | Isolated per channel |
| input type | Capacitive | Discrete input voltage | 100...120 V AC |
| Discrete input current | 5 mA | Input compatibility | 2-wire proximity sensor IEC 60947-5-2<br />2-wire proximity sensor IEC 61131-2 type 3 |
| Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
| Sensor power supply | 85...132 V | Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1 mA | input impedance | 13000 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 2.35 W |
| AC activation response time | 10 ms | AC deactivation response time | 20 ms |
| Typical current consumption | 61 mA 3.3 V DC | MTBF reliability | 1500000 H |
| Protection type | 1 external fuse per channel 0.25 A fast blow | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
| Net Weight | 0.254 lb(US) (0.115 kg) | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Dielectric strength | 1780 V AC 50/60 Hz 1 min |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
