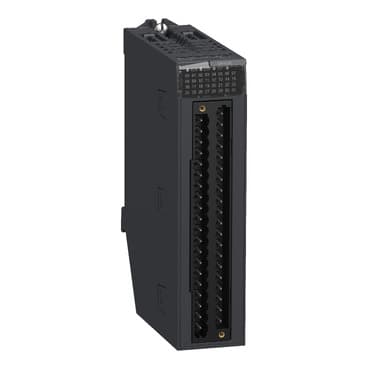

BMXDAI16142
Product ID:29616
Updated: 2026/6/10
Key Features
- 1Reduce overhead costs with high-density AC isolated inputs.
- 2Ensure reliable performance via advanced diagnostics and monitoring.
- 3Simplify legacy Quantum modernization with compatible specifications.
- 4Enhance robustness with channel isolation for critical applications.
- 5Achieve seamless integration across M340, M580, and Quantum.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete I/O module |
| Discrete input number | 16 | Discrete input type | Isolated |
| input type | Capacitive | Discrete input voltage | 100...120 V AC |
| Discrete input current | 11.9 mA | Input compatibility | 2-wire proximity sensor IEC 60947-5-2<br />2-wire proximity sensor IEC 61131-2 Type 1 |
| Network Frequency | 60 Hz | Network frequency limits | 47…63 Hz |
| Sensor power supply | 85...132 V | Current state 1 guaranteed | >= 4 mA |
| Current state 0 guaranteed | <= 3 mA | input impedance | 11...13.4 kOhm |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 4.3 W |
| AC activation response time | 21 ms | AC deactivation response time | 35 ms |
| Typical current consumption | 76 mA 3.3 V DC | MTBF reliability | 3700000 H |
| Protection type | 1 external fuse per group of channel 0.25 A fast blow | Voltage detection threshold | < 40 V AC sensor fault<br />> 85 V AC sensor OK |
| Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.346 lb(US) (0.157 kg) |
| IP Degree of Protection | IP20 | Dielectric strength | 1780 V AC 60 Hz 1 min |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 0…95 % 32…140 °F (0…60 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
