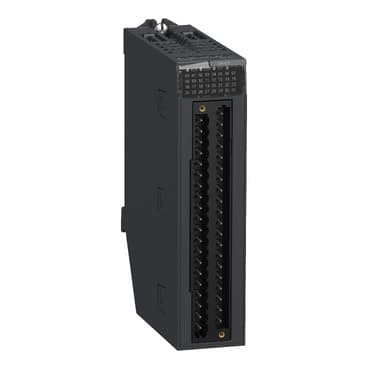

BMXDAI1615
Product ID:29618
Updated: 2026/4/3
Key Features
- 1Acquire signals reliably with 16 isolated inputs. 2、Integrate seamlessly into Modicon X80 control systems. 3、Operate on standard 200-240V AC power. 4、Ensure long-term uptime with 3.7M hours MTBF. 5、Monitor system health with supervised input diagnostics.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
| Discrete input number | 16 | Discrete input type | Isolated |
| input type | Capacitive | Discrete input voltage | 200...240 V AC |
| Discrete input current | 3 mA | Input compatibility | 2-wire proximity sensor IEC 60947-5-2<br />2-wire proximity sensor IEC 61131-2 Type 1 |
| Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
| Sensor power supply | 170...264 V | Current state 1 guaranteed | >= 3 mA |
| Current state 0 guaranteed | <= 2 mA | input impedance | 28000 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 5 W |
| AC activation response time | 10 ms | AC deactivation response time | 20 ms |
| Typical current consumption | 76 mA 3.3 V DC | MTBF reliability | 3700000 H |
| Protection type | 1 external fuse per group of channel 0.25 A fast blow | Voltage detection threshold | < 80 V AC sensor fault<br />> 170 V AC sensor OK |
| Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.346 lb(US) (0.157 kg) |
| IP Degree of Protection | IP20 | Dielectric strength | 1780 V AC 50/60 Hz 1 min |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 0…95 % 32…140 °F (0…60 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
