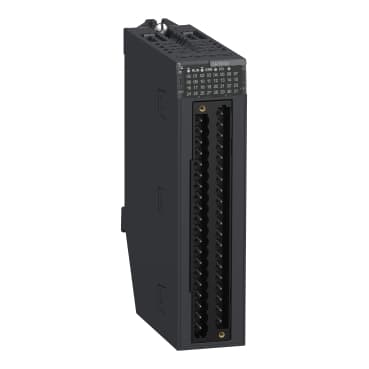

BMXDAI1615H
Product ID:29619
Updated: 2026/7/15
Key Features
- 1Ensure consistent performance with 3.7 million MTBF hours in harsh conditions.
- 2Operate reliably from -40°F to 185°F (-40°C to 85°C) and in high humidity.
- 3Process signals quickly with 10 ms activation and 20 ms deactivation times.
- 4Enhance safety using 16 capacitive-type, isolated discrete inputs.
- 5Protect channels with 1 external fuse per group and meet IP20 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
| Product Specific Application | For severe environments | Discrete input number | 16 |
| Discrete input type | Isolated | input type | Capacitive |
| Discrete input voltage | 200...240 V AC | Discrete input current | 3 mA |
| Input compatibility | 2-wire proximity sensor IEC 60947-5-2<br />2-wire proximity sensor IEC 61131-2 Type 1 | Network Frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz | Sensor power supply | 170...264 V |
| Current state 1 guaranteed | >= 3 mA | Current state 0 guaranteed | <= 2 mA |
| input impedance | 28000 Ohm | Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 5 W | AC activation response time | 10 ms |
| AC deactivation response time | 20 ms | Typical current consumption | 76 mA 3.3 V DC |
| MTBF reliability | 3700000 H | Protection type | 1 external fuse per group of channel 0.25 A fast blow |
| Voltage detection threshold | < 80 V AC sensor fault<br />> 170 V AC sensor OK | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
| Net Weight | 0.346 lb(US) (0.157 kg) | IP Degree of Protection | IP20 |
| Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 | Dielectric strength | 1780 V AC 50/60 Hz 1 min |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Relative humidity | 0…95 % -13…158 °F (-25…70 °C) without condensation | Protective treatment | Conformal coating |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
