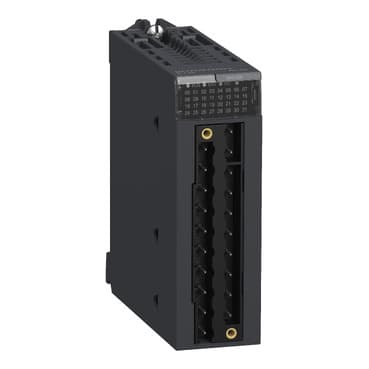

BMXDAO1605
Product ID:29620
Updated: 2026/4/3
Key Features
- 1Control 16 devices with reliable digital output channels. 2、Ensure stable performance using 100-240V AC power. 3、Enhance safety with 500V DC rated insulation. 4、Simplify installation via a modular, integrable design. 5、Guarantee reliability with a two-year MRO warranty.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
| Discrete output number | 16 | Discrete output type | Triac |
| Discrete output voltage | 100...240 V AC | Discrete output current | 0.6 A |
| Maximum leakage current | 1.5 mA at state 0 120 V AC 60 Hz<br />3 mA at state 0 240 V AC 60 Hz | Maximum voltage drop | <1.5 V at state 1 |
| Insulation resistance | > 10 MOhm 500 V DC | Response time on output | <= 1.011 ms resistive activation<br /><= 1.011 ms resistive deactivation |
| Typical current consumption | 79 mA 3.3 V DC | MTBF reliability | 1800000 H |
| Protection type | 1 external fuse fast blow | Inrush current | 20 A |
| Maximum current per output common | 2.4 A | Output current limits | 0.025…4.8 A |
| Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Dielectric strength | 2830 V AC 50/60 Hz 1 min |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
