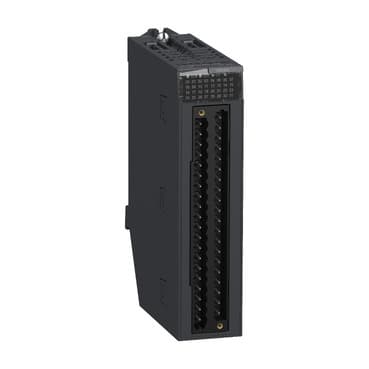

BMXDAO1615
Product ID:29622
Updated: 2026/4/3
Key Features
- 1Ensure reliable performance with robust, long-life components. 2、Power versatile applications from 24 to 240V AC. 3、Control precisely using 16 isolated triac outputs. 4、Install easily in tight spaces with a compact 5.30"x4.13"x1.26" design. 5、Meet safety standards with IP20 and EN/IEC 61131-2 compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
| Discrete output number | 16 EN/IEC 61131-2 | Discrete output type | Triac |
| Discrete output voltage | 24...240 V 20...264 V AC | Discrete output current | 3 A |
| Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
| Sensor power supply | 20...264 V | Current per channel | 3 A 104 °F (40 °C)<br />1.2 A 140 °F (60 °C) |
| Maximum current per module | 10 A 104 °F (40 °C)<br />4 A 140 °F (60 °C) | Maximum leakage current | 1 mA at state 0 24 V<br />1 mA at state 0 48 V<br />2 mA at state 0 115 V<br />2.5 mA at state 0 240 V |
| Maximum voltage drop | <1.55 V at state 1 | Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 1.45 W | Response time on output | <= 10 ms resistive activation<br /><= 10 ms resistive deactivation |
| Typical current consumption | 61 mA 3.3 V DC<br />50 mA 24 V DC | MTBF reliability | 500000 H |
| Protection type | 1 external fuse 4 A fast blow | Output overload protection | With varistor |
| Inrush current | 30 A | Maximum current per output common | 4 A |
| Output current limits | 0.005…10 A | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
| Net Weight | 0.582 lb(US) (0.264 kg) | IP Degree of Protection | IP20 |
| Dielectric strength | 3000 V AC 50/60 Hz 1 min | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 0…95 % 32…140 °F (0…60 °C) without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
