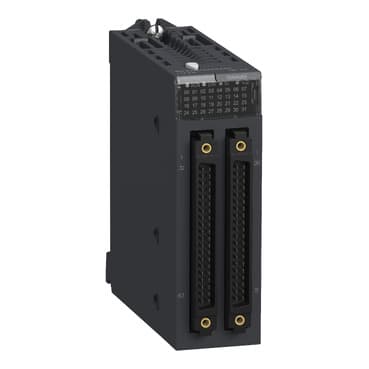

BMXDDI6402KH
Product ID:29556
Updated: 2026/7/15
Key Features
- 1Deploy a robust design certified for ATEX/IECEx hazardous zones.
- 2Handle 64 discrete inputs with isolated 24V DC positive logic.
- 3Integrate a compact and highly reliable module for diverse applications.
- 4Operate reliably from -25°C to 70°C in high humidity.
- 5Achieve 510,000 hours MTBF for maximum operational uptime.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
| Product Specific Application | For severe environments | Discrete input number | 64 |
| Discrete input type | Isolated | input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC positive | Discrete input current | 0.6 mA |
| Sensor power supply | 19...30 V | input impedance | 40000 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 4.3 W |
| DC typical response time | 4 ms | DC maximum response time | 7 ms |
| Paralleling of inputs | No | Typical current consumption | 160 mA 3.3 V DC |
| MTBF reliability | 510000 H | Protection type | 1 external fuse per group of channel 0.5 A fast blow<br /> without reverse polarity protection |
| Voltage detection threshold | < 14 V DC sensor fault<br />> 18 V DC sensor OK | Status LED | 1 LED (Green) +32 channels indicator<br />1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
| Net Weight | 0.320 lb(US) (0.145 kg) | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 |
| Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary<br />500 V DC 1 minute, between group of channels | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % -13…158 °F (-25…70 °C) without condensation |
| Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
