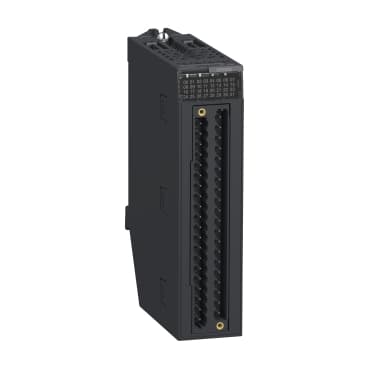

BMXDDO3202
Product ID:29566
Updated: 2026/4/3
Key Features
- 1Deliver robust performance with 32 isolated discrete output channels. 2、Ensure wide compatibility with 2-wire and 3-wire proximity sensors. 3、Enhance safety with insulation resistance exceeding 10 MOhms. 4、Guarantee long-term reliability with 696,320 hours MTBF. 5、Operate reliably in diverse environments from 0°C to 60°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
| Discrete output number | 32 EN/IEC 61131-2 | Discrete output type | Solid state |
| Discrete output logic | Positive | Discrete output voltage | 12...24 V 10.8...30 V DC |
| Discrete output current | 0.5 A | Current per channel | 0.55 A |
| Maximum current per module | 17.6 A | Maximum leakage current | 0.1 mA at state 0 |
| Maximum voltage drop | <1.2 V at state 1 | Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 4.8 W | Response time on output | 0.3 ms |
| Paralleling of outputs | Yes : 3 maximum | Typical current consumption | 56 mA 3.3 V DC |
| MTBF reliability | 833000 H | Protection type | External fuse reverse polarity protection<br /> short-circuit protection<br /> overload protection<br /> overvoltage protection |
| Output overload protection | With electronic circuit breaker 1.5 In < Id < 2 In<br />With current limiter | Output overvoltage protection | With transil diode |
| Output short-circuit protection | With external fuse | Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | < 14 V DC preactuator fault<br />> 18 V DC preactuator at state 0 | Maximum tungsten load | 6 W 24 V<br />3 W 12 V |
| Switching frequency | 0.5/LI² Hz | Load impedance ohmic | > 54.54 Ohm |
| Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 5.009 oz (142.01 g) |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1780 V AC 50/60 Hz 1 minute, output/ground<br /> 1 minute, output/internal logic | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
