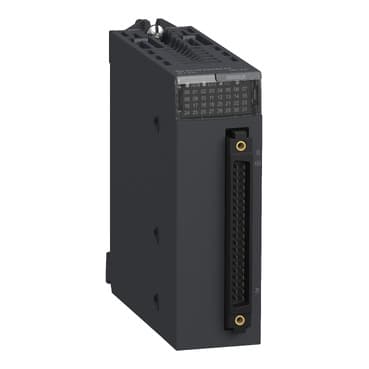

BMXDDO3202K
Product ID:29568
Updated: 2026/7/15
Key Features
- 1Deliver 32 solid-state outputs with positive logic for reliable operation.
- 2Operate on stable 24V DC positive logic voltage.
- 3Ensure uptime with a high MTBF of 360,412 hours.
- 4Protect your system with comprehensive safety features.
- 5Install confidently with IP20-rated environmental durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
| Discrete output number | 32 EN/IEC 61131-2 | Discrete output type | Solid state |
| Discrete output logic | Positive | Discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.1 A | Current per channel | 0.125 A |
| Maximum current per module | 3.2 A | Maximum leakage current | 0.1 mA at state 0 |
| Maximum voltage drop | <1.5 V at state 1 | Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3.6 W | Response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 3 maximum | Typical current consumption | 125 mA 3.3 V DC |
| MTBF reliability | 290000 H | Protection type | External fuse reverse polarity protection<br /> short-circuit protection<br /> overload protection<br /> overvoltage protection |
| Output overload protection | With current limiter<br />With electronic circuit breaker 0.125 A < Id < 0.185 A | Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse | Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | < 14 V DC preactuator fault<br />> 18 V DC preactuator at state 0 | Maximum tungsten load | 1.2 W |
| Switching frequency | 0.5/LI² Hz | Maximum overload time | 15 ms |
| Load impedance ohmic | >= 220 Ohm | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
| Net Weight | 0.24 lb(US) (0.11 kg) | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground<br />1500 V AC 50/60 Hz 1 minute, output/internal logic<br />500 V DC 1 minute, between group of channels |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
