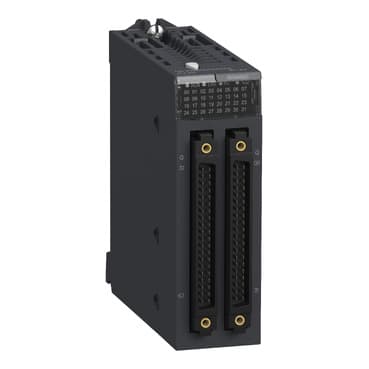

BMXDDO6402KC
Product ID:29571
Updated: 2026/7/15
Key Features
- 1Consolidate 64 isolated inputs into a compact footprint.
- 2Achieve precise control with a 4ms typical response time.
- 3Reduce energy consumption with low 1mA current operation.
- 4Deploy reliably in harsh industrial environments with IP20 rating.
- 5Integrate seamlessly into Modicon M340 and automation systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
| Product Specific Application | For severe environments | Discrete output number | 64 EN/IEC 61131-2 |
| Discrete output type | Solid state | Discrete output logic | Positive |
| Discrete output voltage | 24 V 19...30 V DC | Discrete output current | 0.1 A |
| Current per channel | 0.125 A | Maximum current per module | 6.4 A |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 6.85 W |
| Response time on output | 1.2 ms | Paralleling of outputs | Yes : 3 maximum |
| Typical current consumption | 160 mA 3.3 V DC | MTBF reliability | 150000 H |
| Protection type | reverse polarity protection<br />External short-circuit protection<br /> overload protection<br /> overvoltage protection | Output overload protection | With current limiter<br />With electronic circuit breaker 0.125 A < Id < 0.185 A |
| Output overvoltage protection | With transil diode | Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode | Voltage detection threshold | < 14 V DC preactuator fault<br />> 18 V DC preactuator at state 0 |
| Maximum tungsten load | 1.2 W | Switching frequency | 0.5/LI² Hz |
| Maximum overload time | 15 ms | Load impedance ohmic | >= 220 Ohm |
| Status LED | 1 LED (Green) +32 channels indicator<br />1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.33 lb(US) (0.15 kg) |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 | Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground<br />1500 V AC 50/60 Hz 1 minute, output/internal logic<br />500 V DC 1 minute, between group of channels |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 32…140 °F (0…60 °C) without condensation | Protective treatment | Conformal coating |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
