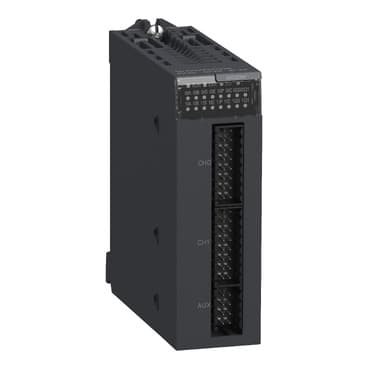

BMXEHC0200H
Product ID:29664
Updated: 2026/7/15
Key Features
- 1Support counting frequencies up to 60,000 Hz.
- 2Operate reliably in severe environments from -25°C to 70°C.
- 3Connect to 19.2-30 V 2-wire/3-wire sensors and encoders.
- 4Deliver output with 0.5 A maximum current per channel.
- 5Utilize real-time diagnostics for easy troubleshooting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M340 automation platform | Product or Component Type | Counter module |
| Product Specific Application | For severe environments | Number of Channels | 2 |
| Maximum counting frequency | 60000 Hz | Number of inputs | 6 |
| Input compatibility | 19.2…30 V 2-wire/3-wire proximity sensor<br /> incremental encoder with push-pull outputs, 10...30 V totem pole | Input voltage | 24 V DC type 3 |
| Number of outputs | 2 | Output voltage | 24 V DC |
| Counter functions | Ratio count<br />Frequency meter<br />Down counting<br />32-bit counter counting<br />Loop (modulo) counting<br />Measure time periods<br />Count events<br />Width modulation | Cycle time | 1 ms |
| Isolation voltage | 1500 V 60 s | input type | 3 auxiliary input<br />3 high speed |
| Input voltage limits | 19.2...30 V at 60 °C<br />26.4 V at 70 °C | Input current | 2 mA at 11 V |
| Voltage state 1 guaranteed | 11...30 V | Current state 1 guaranteed | >= 6 mA |
| Voltage state 0 guaranteed | < 5 V | Current state 0 guaranteed | <= 1.5 mA |
| Discrete output logic | Positive or negative configurable | Maximum output current | 2 A per module<br />0.5 A per output |
| Output voltage limits | 19.2...30 V | Maximum load current | 1 A per module<br />0.5 A per output |
| Maximum leakage current | 0.1 mA at state 0 | Maximum voltage drop | <3 V at state 1 |
| Output overload protection | Integrated | Output short-circuit protection | 1.5 A integrated |
| Overlap time | 0.2 ms | Electrical connection | 1 connector 10 pins for wiring auxiliary input and sensor power supply<br />1 connector 16 pins for wiring the sensors of counter 0<br />1 connector 16 pins for wiring the sensors of counter 1 |
| Current consumption | 200 mA 3.3 V DC bus<br />40 mA 24 V DC rack<br />80 mA 24 V DC sensor | Module format | Standard |
| Net Weight | 0.247 lb(US) (0.112 kg) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy |
| Standards | EN 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
Specifications may be subject to change without notice
