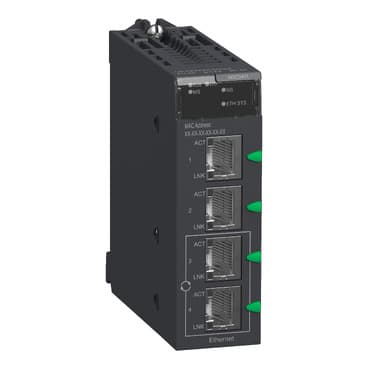

BMXNOC0401
Product ID:29643
Updated: 2026/7/15
Key Features
- 1Ensure seamless 10/100 Mbps data transfer for reliable communication.
- 2Withstand harsh environments with a 0°C to 60°C operating range.
- 3Conserve energy with efficient 555 mA current consumption at 3.3V DC.
- 4Monitor real-time status via multiple LED indicators for RUN, ERR, and more.
- 5Integrate easily with Modicon M340 platforms and industrial protocols.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M340 automation platform | Product or Component Type | Ethernet TCP/IP network module |
| Concept | Transparent Ready | Integrated connection type | Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30 |
| Protective treatment | TC | Communication service | Bandwidth management<br />Data Editor (via PC terminal)<br />FDR server<br />Rack Viewer<br />SNMP network administrator<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />Embedded 4-port switch<br />RSTP support<br />Port mirroring |
| Port Ethernet | 10BASE-T/100BASE-TX | Memory usage | Application saving<br />Activating the standard web server |
| Supply | Internal power supply via rack | marking | CE |
| Local signalling | for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for status of Ethernet network (ETH STS) 1 LED (amber)<br /> for MS (Module Status) 1 LED (green/red)<br /> for NS (Network Status) 1 LED (green/red) | Control Type | Processor or system fault (ERR) |
| Current consumption | 555 mA 3.3 V DC | Module format | Standard |
| Net Weight | 0.4 lb(US) (0.2 kg) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative Humidity | 10…95 % without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 | Environmental characteristic | Hazardous location class I division 2 |
Specifications may be subject to change without notice
