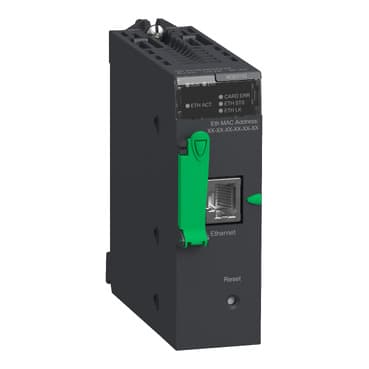

BMXNOE0110
Product ID:29646
Updated: 2026/7/14
Key Features
- 1Integrate high-performance Ethernet TCP/IP communication for industrial automation.
- 2Ensure reliable 10/100 Mbps data transmission rates.
- 3Power the module with a standard 24 VDC 90 mA supply.
- 4Achieve seamless compatibility with the Modicon M340 platform.
- 5Utilize flexible tools for easy setup and maintenance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M340 automation platform | Product or Component Type | Ethernet TCP/IP network module |
| Concept | Transparent Ready | Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
| Protective treatment | TC | Communication service | Bandwidth management<br />FDR server<br />Rack Viewer<br />SNMP network administrator<br />Global Data<br />I/O scanning<br />Modbus TCP messaging<br />Web server configurable<br />Data Editor (via PC, pocket PC or PDA terminal)<br />SOAP XML Web service (server) |
| Port Ethernet | 10BASE-T/100BASE-TX | Memory description | Supplied Flash memory card (BMXRWSC016M)<br />Internal RAM 16000 kB |
| Memory usage | User web page size internal RAM<br />Activating the standard web server supplied Flash memory card (BMXRWSC016M)<br />Application saving supplied Flash memory card (BMXRWSC016M) | Supply | Internal power supply via rack |
| marking | CE | Local signalling | for activity on Ethernet network (ETH ACT) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for status of Ethernet network (ETH STS) 1 LED (green)<br /> for data rate (ETH 100) 1 LED (red)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red) |
| Control Type | RESET push-button cold restart | Current consumption | 90 mA 24 V DC |
| Module format | Standard | Net Weight | 0.4 lb(US) (0.2 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative Humidity | 10…95 % without condensation |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Specifications may be subject to change without notice
