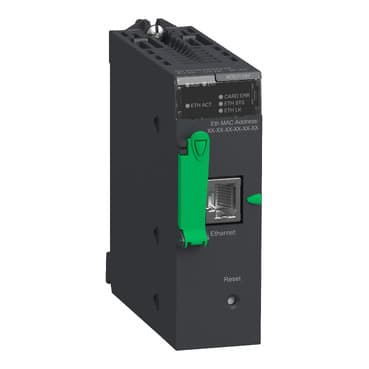

BMXNOE0110H
Product ID:29647
Updated: 2026/4/3
Key Features
- 1Deploy Transparent Ready Class C30 Server reliability for severe environments. 2、Utilize 10/100 Mbit/s RJ45 connection for high-speed Ethernet. 3、Access 16 MB internal RAM for efficient data processing. 4、Rely on conformal coating for durable operation in harsh conditions. 5、Configure the built-in web server with SNMP for comprehensive management.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M340 automation platform | Product or Component Type | Ethernet TCP/IP network module |
| Product Specific Application | For severe environments | Concept | Transparent Ready |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 | Protective treatment | Conformal coating |
| Communication service | Bandwidth management<br />FDR server<br />Rack Viewer<br />SNMP network administrator<br />Global Data<br />I/O scanning<br />Modbus TCP messaging<br />Web server configurable<br />Data Editor (via PC, pocket PC or PDA terminal)<br />SOAP XML Web service (server) | Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash memory card (BMXRWSC016M)<br />Internal RAM 16000 kB | Memory usage | User web page size internal RAM<br />Activating the standard web server supplied Flash memory card (BMXRWSC016M)<br />Application saving supplied Flash memory card (BMXRWSC016M) |
| Supply | Internal power supply via rack | marking | CE |
| Local signalling | for activity on Ethernet network (ETH ACT) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for status of Ethernet network (ETH STS) 1 LED (green)<br /> for data rate (ETH 100) 1 LED (red)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red) | Control Type | RESET push-button cold restart |
| Current consumption | 90 mA 24 V DC | Module format | Standard |
| Net Weight | 0.4 lb(US) (0.2 kg) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
| Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />IEC 61000-6-5, interface type 1 and type 2<br />IEC 61850-3, location G<br />IEC 60079-0 | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Specifications may be subject to change without notice
