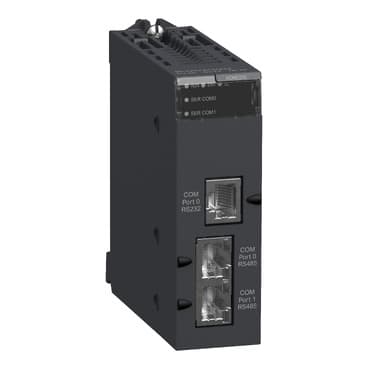

BMXNOM0200
Product ID:29648
Updated: 2026/4/3
Key Features
- 1Support both RS-485 and RS-232 protocols for versatile connectivity. 2、Operate in Modbus and character mode for seamless system integration. 3、Power via the rack to eliminate external power sources. 4、Monitor status with 4 LEDs for ERR, RUN, and serial comms. 5、Meet IP20 protection standards for reliable industrial operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Serial links module |
| Concept | Serial link | Integrated connection type | RS232 RJ45 115.2 kbit/s 8 wires<br />RS485 RJ45 57.6 kbit/s 1 twisted pair |
| Protective treatment | TC | Supply | Internal power supply via rack |
| marking | CE | Local signalling | for module fault (ERR) 1 LED (red)<br /> for module running (RUN) 1 LED (green)<br /> for activity on the serial link (SER COM 0) 1 LED (green)<br /> for activity on the serial link (SER COM 1) 1 LED (green) |
| Current consumption | 80 mA 24 V DC | Module format | Standard |
| Net Weight | 0.51 lb(US) (0.23 kg) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative Humidity | 10…95 % without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Specifications may be subject to change without notice
