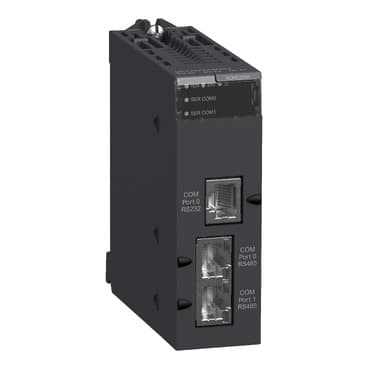

BMXNOM0200H
Product ID:29649
Updated: 2026/4/3
Key Features
- 1Operate in harsh chemical environments from -25°C to +70°C. 2、Utilize 2 RS-485/232 ports for Modbus and character mode communication. 3、Consume only 80mA via internal rack power supply for efficiency. 4、Protect against solid objects larger than 12.5 mm in diameter. 5、Comply with UL 508, EN 61131-2, and international safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Serial links module |
| Product Specific Application | For severe environments | Concept | Serial link |
| Integrated connection type | RS232 RJ45 115.2 kbit/s 8 wires<br />RS485 RJ45 57.6 kbit/s 1 twisted pair | Protective treatment | Conformal coating |
| Supply | Internal power supply via rack | marking | CE |
| Local signalling | for module fault (ERR) 1 LED (red)<br /> for module running (RUN) 1 LED (green)<br /> for activity on the serial link (SER COM 0) 1 LED (green)<br /> for activity on the serial link (SER COM 1) 1 LED (green) | Current consumption | 80 mA 24 V DC |
| Module format | Standard | Net Weight | 0.51 lb(US) (0.23 kg) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
| Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Specifications may be subject to change without notice
