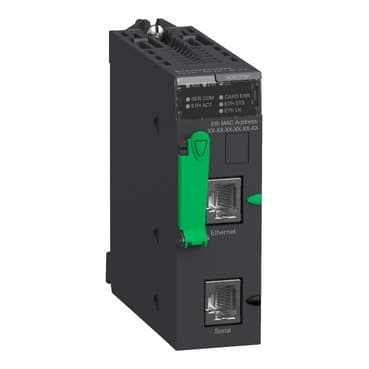

BMXNOR0200H
Product ID:29650
Updated: 2026/7/15
Key Features
- 1Support 10/100 Mbps Ethernet and serial communication for reliable data transfer.
- 2Operate in ambient air temperatures from -25 to 70°C for harsh settings.
- 3Feature conformal coating and LED indicators for protection and monitoring.
- 4Integrate seamlessly with IEC 60870-5-101/104, DNP3, and Modbus TCP.
- 5Consume only 95 mA at 24 V DC in a compact, 0.2 kg module.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M340 | Product or Component Type | Communication module |
| Integrated connection type | Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30<br />Serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30 | Protective treatment | Conformal coating |
| Communication service | Bandwidth management<br />Modbus TCP messaging<br />DNP3/DNP3 IP protocol<br />IEC 60870-5 -101/-104 protocol<br />Time stamped events management<br />External modem management (serial, PSTN, GSM, GPRS/3G)<br />Data logging in CSV files<br />Email/SMS notifications<br />Web server, rack viewer, data editor<br />BootP, DHCP, FDR client<br />SMTP server, FTP client/server, NTP client, SNMP agent,<br />Automatic events backup on power loss<br />Multi-protocols support in a single module (master and slave)<br />Transparent events routing from remote slaves to SCADA | Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash SD memory card (BMXRWS128MWF) 128000 kB | Memory usage | Activating the standard web server<br />User web pages storage<br />Data logging CSV files storage |
| Supply | Internal power supply via rack | Local signalling | for activity on Ethernet network (ETH ACT) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for status of Ethernet network (ETH STS) 1 LED (green)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for download in progress (DL) 1 LED (red)<br /> for serial communication (SER COM) 1 LED (yellow)<br /> for data rate (ETH LINK) 1 LED (green) |
| Current consumption | 95 mA 24 V DC | Module format | Standard |
| Net Weight | 0.4 lb(US) (0.2 kg) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />UKCA |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Specifications may be subject to change without notice
