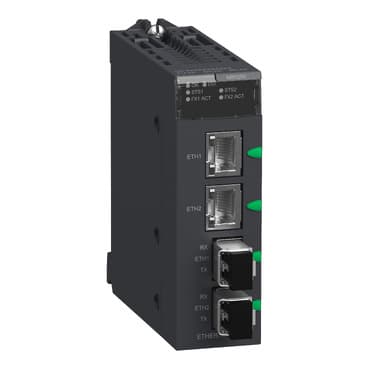

BMXNRP0200C
Product ID:29652
Updated: 2026/7/15
Key Features
- 1Support multimode fiber for distances up to 2 km.
- 2Enable hot-swap replacement without system disruption.
- 3Build with robust technology for harsh environment reliability.
- 4Feature IP20 rating and compact dimensions for process applications.
- 5Carry CE, GOST, and C-Tick certifications for global safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Fibre optic repeater |
| Optic fiber type | Multi mode | Rated voltage | 24 V |
| Current consumption | 140 mA typical<br />200 mA maximum | Function Available | Hot swap |
| Number of port | 2 RJ45 100BASE-TX IEEE 802.3u<br />2 fiber optic 100BASE-FX IEEE 802.3u | Local signalling | for power supply status 1 LED (green)<br /> for error condition (ERR) 1 LED (red)<br /> for link status 2 LEDs (green)<br /> for fiber port state and activity 2 LEDs (green) |
| Wavelength | 0.000051575 in (1310 nm) | Operating Distance | 0...2000 m |
| Attenuation | -23.5…-14 dB 50/125 µm)<br />-20…-14 dB 62.5/125 µm) | Rise/fall time | 3 ns |
| Receiver Sensitivity | - 31...- 14 dBm | marking | CE |
| Width | 1.3 in (32 mm) | Height | 3.9 in (100 mm) |
| Depth | 3.4 in (86 mm) | Net Weight | 7.2 oz (203 g) |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 0…95 % | Protective treatment | Conformal coating |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
| Dielectric strength | 1400 V DC between field and bus<br />500 V DC between channels | IP Degree of Protection | IP20 |
| Operating altitude | 0...13123.36 ft (0...4000 m) |
Specifications may be subject to change without notice
