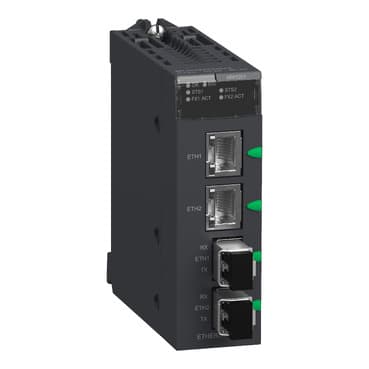

BMXNRP0201
Product ID:29653
Updated: 2026/4/3
Key Features
- 1Quickly replace modules without disrupting system operations. 2、Support long-distance Ethernet communications with 1310nm wavelength. 3、Withstand harsh industrial environments with IP20 protection. 4、Integrate easily into tight spaces measuring 86mm x 32mm x 100mm. 5、Ensure compatibility with Modicon X80 range and various PACs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Fibre optic repeater |
| Optic fiber type | Single mode | Rated voltage | 24 V |
| Current consumption | 140 mA typical<br />200 mA maximum | Function Available | Hot swap |
| Number of port | 2 RJ45 100BASE-TX IEEE 802.3u<br />2 fiber optic 100BASE-FX IEEE 802.3u | Local signalling | for power supply status 1 LED (green)<br /> for error condition (ERR) 1 LED (red)<br /> for link status 2 LEDs (green)<br /> for fiber port state and activity 2 LEDs (green) |
| Wavelength | 0.000051575 in (1310 nm) | Operating Distance | 0...15000 m |
| Attenuation | -15…-8 dB 9/125 µm) | Rise/fall time | 2.5 ns |
| Receiver Sensitivity | - 31...- 8 dBm | marking | CE |
| Width | 1.3 in (32 mm) | Height | 3.9 in (100 mm) |
| Depth | 3.4 in (86 mm) | Net Weight | 7.2 oz (203 g) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Relative humidity | 0…95 % | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Product certifications | CE<br />RCM<br />CSA<br />EAC<br />Merchant Navy<br />UL | Standards | EN/IEC 61010-2-201<br />EN/IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201 |
| Dielectric strength | 1400 V DC between field and bus<br />500 V DC between channels | IP Degree of Protection | IP20 |
| Operating altitude | 0...13123.36 ft (0...4000 m) |
Specifications may be subject to change without notice
