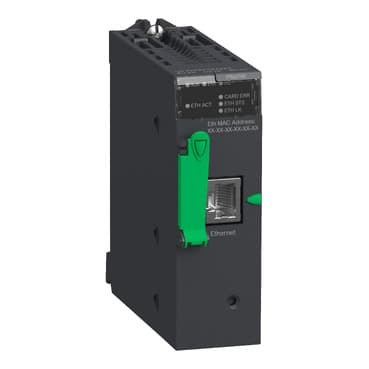

BMXPRA0100
Product ID:29785
Updated: 2026/7/15
Key Features
- 1Ensure comprehensive compatibility with Modicon X80 DIO drops.
- 2Enable efficient communication via I/O scanning with master PAC.
- 3Deploy one high-performance module per Ethernet Modbus TCP DIO drop.
- 4Support up to 1024 digital and 256 analog I/O points.
- 5Meet enhanced reliability with RoHS and SVHC compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Peripheral remote I/O adaptor |
| Number of port | 1 | Integrated connection type | Ethernet/IP device network |
| communication port protocol | Modbus TCP | Realtime clock | With |
| Memory capacity | 448 kB internal<br />96 kB removable | Application structure | 1 master task |
| Local signalling | for module active (RUN) 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for external fault (I/O) 1 LED (red)<br /> for activity on Ethernet network (ETH ACT) 1 LED (green)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for Ethernet link diagnostics (STS) 1 LED (green)<br /> for Ethernet network status (link) 1 LED (green) | Product compatibility | 0…1024 discrete I/O module<br />0…256 analog I/O module<br />0…2 Ethernet module |
| Average consumption in mA | 95 mA | Power dissipation in W | 2.3 W |
| marking | CE | Module format | Standard |
| Maximum altitude transport | 9842.5 ft (3000 m) | Relative Humidity | 95 % without condensation |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 | Environmental characteristic | Hazardous location class I division 2 |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Operating altitude | <= 6561.68 ft (2000 m) |
