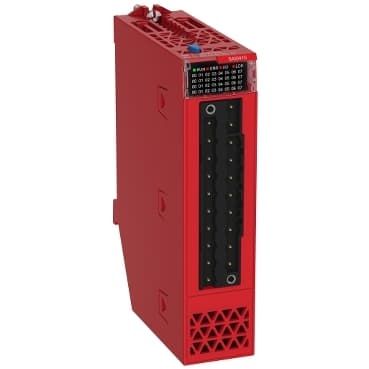

BMXSAI0410
Product ID:29794
Updated: 2026/7/15
Key Features
- 1Ensure reliable analog readings with a high-reliability safety design.
- 2Process signals securely using 4 isolated analog inputs.
- 3Connect diverse sensors with 4-20mA input compatibility.
- 4Achieve precise measurement via 16-bit analog/digital conversion.
- 5Meet global safety standards including TÜV, UL, and ATEX.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Analog input module |
| Electrical connection | 20 ways 1 connector | Isolation between channels | Isolated |
| Input level | High level | Analogue input number | 4 |
| Analogue input type | Current 4...20 mA | Analog/digital conversion | 16 bits |
| Analogue input resolution | 13 bits<br />0...12500 counts | Permitted overload on inputs | 25 mA 4...20 mA |
| Input impedance | 286 Ohm | Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Type of filter | Second order digital filtering | Nominal read cycle time | 6 ms for 4 channels |
| Measurement error | <= 0.3 % of full scale 4...20 mA - 25...60 °C | Temperature drift | 30 ppm/°C 4...20 mA |
| Recalibration | Internal | Minimum crosstalk attenuation | 120 dB |
| Digital value format | +/- 32000 in user scale<br />+/- 10000 by default | Isolation voltage | 500 V DC between channels<br />1500 V DC between channels and ground<br />1500 V DC between channels and bus |
| Measurement resolution | 2 µA 4...20 mA | Maximum conversion value | 0...25 mA 4...20 mA |
| MTBF reliability | 463000 H | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
| Status LED | 1 LED (Green) RUN<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) ERR<br />1 LED (Red) I/O | Net Weight | 0.315 lb(US) (0.143 kg) |
| Current consumption | 200 mA 3.3 V DC<br />115 mA 24 V DC | Vibration resistance | 3 gn |
| Shock resistance | 15 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 | Product Certifications | TÜV<br />CSA<br />EAC<br />RCM<br />UL<br />ATEX<br />Merchant Navy |
| Standards | CSA C22.2 No 61010-2-201<br />EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201 | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2<br />Fungal spore resistant class 3B2 IEC 60721-3-3 |
