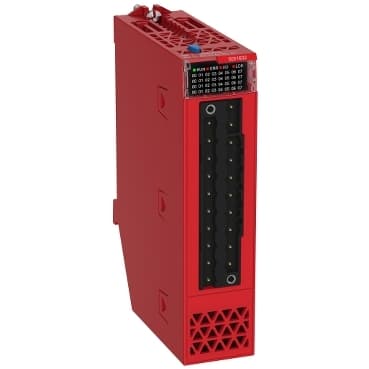

BMXSDI1602
Product ID:29795
Updated: 2026/7/15
Key Features
- 1Integrate 16 Type 3 inputs in two groups of eight.
- 2Achieve SIL3 certification for critical safety applications.
- 3Connect compatible 2 or 3 wire proximity sensors easily.
- 4Monitor status via clear LED diagnostic display.
- 5Perform module hot swap during runtime without stopping.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
| Discrete input number | 16 | Discrete input type | Not isolated |
| input type | Current sink (logic positive) | Discrete input voltage | 24 V DC positive |
| Discrete input current | 3.2 mA | Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2 |
| Sensor power supply | 19...30 V | Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA | input impedance | 7500 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 3.57 W |
| DC typical response time | 6 ms | DC maximum response time | 6 ms |
| Paralleling of inputs | Yes | Typical current consumption | 256 mA 3.3 V DC<br />100 mA 24 V |
| MTBF reliability | 265000 H | Protection type | reverse polarity protection<br />External overload protection 0.5 A fast blow |
| Voltage detection threshold | < 14 V DC sensor fault<br />> 18 V DC sensor OK | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
| Net Weight | 0.254 lb(US) (0.115 kg) | IP Degree of Protection | IP20 |
| Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 | Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary |
| Vibration resistance | 3 gn | Shock resistance | 15 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Protective treatment | Conformal coating |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
