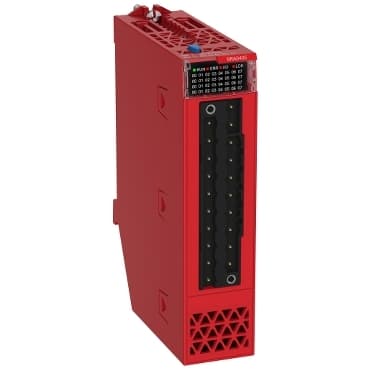

BMXSRA0405
Product ID:29797
Updated: 2026/4/3
Key Features
- 1Control four discrete relay outputs for precise automation. 2、Operate with versatile 24-240V AC and 12-24V DC voltage ranges. 3、Achieve fast switching with 12 ms activation and 6 ms deactivation times. 4、Ensure durability with 10 million mechanical and 80000 electrical cycles. 5、Protect your system with short-circuit and overload safety features.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
| Discrete output number | 4 EN/IEC 61131-2 | Discrete output type | Relay |
| Discrete output voltage | 24...240 V 10...264 V AC<br />12...24 V 10...34 V DC | [Ith] conventional free air thermal current | 5 A |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 3.9 W |
| Response time on output | 12 ms activation<br />6 ms deactivation | Typical current consumption | 240 mA 3.3 V DC<br />130 mA 24 V DC |
| MTBF reliability | 624000 H | Protection type | External short-circuit protection<br /> overvoltage protection, inductive AC<br /> overvoltage protection, inductive DC<br />External overload protection |
| Output overload protection | Use 1 fast blow fuse per channel or group of channel | Output overvoltage protection | Use discharge diode on each output DC<br />Use RC circuit on each output AC<br />Use ZNO surge limiter on each output AC |
| Output short-circuit protection | Use 1 fast blow fuse per channel or group of channel | Minimum switching current | 10 mA 5 V DC |
| Maximum switching voltage | 230 V AC | Mechanical durability | 10000000 cycles |
| Electrical durability | AC-15 80000 cycles 250 VA 250 V -13…140 °F (-25…60 °C)<br />AC-15 80000 cycles 500 VA 250 V -13…140 °F (-25…60 °C)<br />AC-15 80000 cycles 750 VA 250 V -13…140 °F (-25…60 °C)<br />AC-12 250000 cycles 250 VA 250 V -13…140 °F (-25…60 °C)<br />AC-12 70000 cycles 500 VA 250 V -13…140 °F (-25…60 °C)<br />AC-12 30000 cycles 1000 VA 250 V -13…140 °F (-25…60 °C)<br />DC-13 80000 cycles 24 VA 24 V -13…140 °F (-25…60 °C)<br />DC-13 50000 cycles 48 VA 24 V -13…140 °F (-25…60 °C)<br />DC-13 30000 cycles 96 VA 24 V -13…140 °F (-25…60 °C)<br />DC-12 1000000 cycles 24 VA 24 V -13…140 °F (-25…60 °C)<br />DC-12 500000 cycles 48 VA 24 V -13…140 °F (-25…60 °C)<br />DC-12 300000 cycles 120 VA 24 V -13…140 °F (-25…60 °C) | Switching frequency | <= 50 Hz |
| Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.320 lb(US) (0.145 kg) |
| IP Degree of Protection | IP20 | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 |
| Dielectric strength | 2000 V AC 50/60 Hz 1 min | Vibration resistance | 3 gn |
| Shock resistance | 15 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
