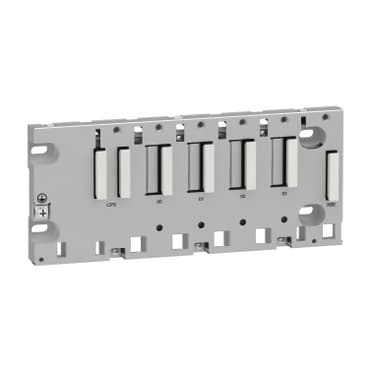

BMXXBP0400
Product ID:29806
Updated: 2026/4/3
Key Features
- 1Distribute power efficiently at 162 mW and 2.8 W. 2、Ensure reliable operation with 2 million hours MTBF. 3、Mount flexibly on panel, plate, or DIN rail. 4、Provide basic IP20 protection against dust and contact. 5、Connect seamlessly with Modicon X80 system modules.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Backplane |
| Number of slots | 4 bus X | Product Compatibility | BMXP34 processor<br />BMXCPS power supply<br />I/O module<br />Specific application module |
| Power consumption in W | 1.12 W | Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws panel<br />By 4 M4/M5/M6 screws mounting plate<br />By clips 35 mm symmetrical DIN rail | Height | 4.08 in (103.7 mm) |
| Width | 9.5 in (242.4 mm) | Depth | 0.7 in (19 mm) |
| Net Weight | 1.39 lb(US) (0.63 kg) | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative Humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />UKCA<br />Merchant Navy |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G |
Specifications may be subject to change without notice
