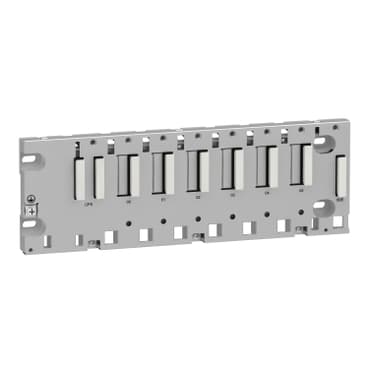

BMXXBP0600
Product ID:29808
Updated: 2026/7/15
Key Features
- 1Maximize flexibility with six slots for various modules.
- 2Install easily via panel, plate, or DIN rail mounting.
- 3Ensure reliable operation in harsh environments with IP20 protection.
- 4Operate seamlessly from 0°C to 60°C in diverse settings.
- 5Meet environmental standards with RoHS compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Backplane |
| Number of slots | 6 bus X | Product Compatibility | BMXP34 processor<br />BMXCPS power supply<br />I/O module<br />Specific application module |
| Power consumption in W | 1.68 W | Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws panel<br />By 4 M4/M5/M6 screws mounting plate<br />By clips 35 mm symmetrical DIN rail | Height | 4.08 in (103.7 mm) |
| Width | 12.1 in (307.6 mm) | Depth | 0.7 in (19 mm) |
| Net Weight | 1.74 lb(US) (0.79 kg) | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative Humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />UKCA<br />Merchant Navy |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G |
Specifications may be subject to change without notice
