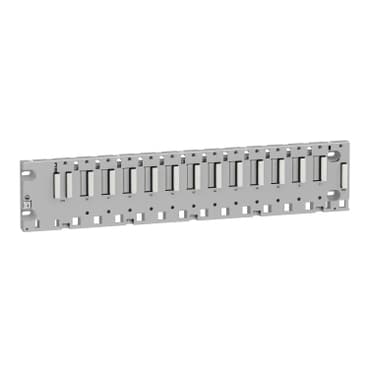

BMXXBP1200
Product ID:29812
Updated: 2026/4/3
Key Features
- 1Accommodate various modules like I/O, processors, and power supplies. 2、Ensure energy efficiency with low 0.74-watt power consumption. 3、Protect against solid objects larger than 12.5mm with IP20 rating. 4、Mount on panels or plates using 4.32-6.35 mm screws. 5、Deliver stable performance with integrated EMC filter and Energy Adaptation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Backplane |
| Number of slots | 12 bus X | Product Compatibility | BMXP34 processor<br />BMXCPS power supply<br />I/O module<br />Specific application module |
| Power consumption in W | 0.17 W | Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws panel<br />By 4 M4/M5/M6 screws mounting plate | Height | 4.08 in (103.7 mm) |
| Width | 19.8 in (503.2 mm) | Depth | 0.7 in (19 mm) |
| Net Weight | 2.80 lb(US) (1.27 kg) | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative Humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />UKCA<br />Merchant Navy |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G |
Specifications may be subject to change without notice
