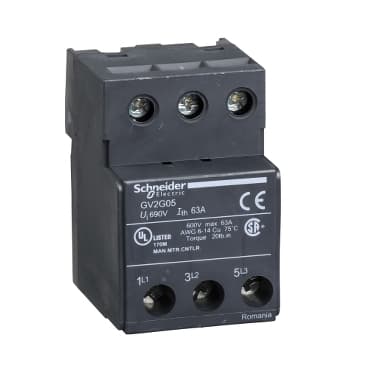

GV2G05
Product ID:29764
Updated: 2026/7/14
Key Features
- 1Handle high-voltage applications up to 690 VAC.
- 2Support demanding loads with a 63 A current capacity.
- 3Ensure operational safety with IP20 protection rating.
- 4Secure connections easily using screw clamp terminals.
- 5Connect seamlessly to TeSys GV2, U, D, K Motor Starters.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | Linergy | Product name | FT |
| Device short name | GV2G | Product or Component Type | Terminal block |
| accessory / separate part category | Connection accessory | Poles description | 3P |
| Range compatibility | TeSys GV2<br />TeSys Deca<br />TeSys K<br />TeSys U | [Ie] rated operational current | 63 A |
| Mounting Location | 35 mm DIN rail | IP degree of protection | IP20 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 690 V IEC 60947-1 | Connections - terminals | screw clamp terminals 1 solid AWG 4<br /> screw clamp terminals 1 0.002…0.02 in² (1.5…16 mm²) flexible with cable end<br /> screw clamp terminals 1 0.002…0.02 in² (1.5…16 mm²) flexible without cable end<br /> screw clamp terminals 1 0.002…0.04 in² (1.5…25 mm²) solid<br /> screw clamp terminals 2 0.002…0.006 in² (1.5…4 mm²) flexible with cable end<br /> screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²) solid<br /> screw clamp terminals 2 0.004…0.006 in² (2.5…4 mm²) flexible without cable end<br /> screw clamp terminals 1 flexible AWG 4 |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminals<br /> 19.5 lbf.in (2.2 N.m) connector | Net Weight | 0.254 lb(US) (0.115 kg) |
Specifications may be subject to change without notice
