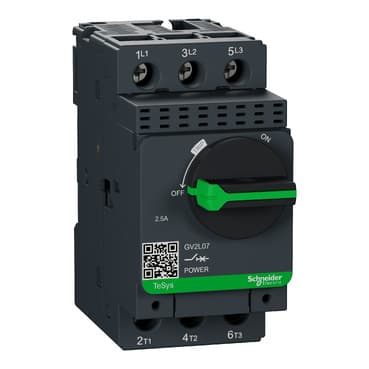

GV2L07
Product ID:29706
Updated: 2026/4/3
Key Features
- 1Deliver a high breaking capacity of 100kA at 400V for robust short-circuit protection. 2、Ensure long-term reliability with a rating for 100,000 AC-3 operating cycles. 3、Meet global compliance through IEC, UL, CSA, CCC, EAC, and Marine certifications. 4、Save panel space using the compact 45mm width design with screw terminals. 5、Enable complete motor protection by pairing with the LRD07 thermal overload relay.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys Deca | Product name | TeSys GV2 |
| Product or Component Type | Motor circuit breaker | Device short name | GV2L |
| Device Application | Motor protection | Trip unit technology | Magnetic |
| Poles description | 3P | Network type | AC |
| Utilisation category | Category A IEC 60947-2<br />AC-3 IEC 60947-4-1<br />AC-3e IEC 60947-4-1 | Network frequency | 50/60 Hz IEC 60947-2 |
| Motor power kW | 0.75 kW 400/415 V AC 50/60 Hz<br />1.1 kW 500 V AC 50/60 Hz<br />1.5 kW 690 V AC 50/60 Hz | Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 440 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 500 V AC 50/60 Hz IEC 60947-2<br />4 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2<br />100 % 400/415 V AC 50/60 Hz IEC 60947-2<br />100 % 440 V AC 50/60 Hz IEC 60947-2<br />100 % 500 V AC 50/60 Hz IEC 60947-2<br />100 % 690 V AC 50/60 Hz IEC 60947-2 | Control Type | Rotary handle |
| Line Rated Current | 2.5 A | Thermal protection adjustment range | 1.6…2.5 A IEC 60947-4-1 |
| Magnetic tripping current | 39 A | [Ith] conventional free air thermal current | 2.5 A IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 | [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 | Suitability for isolation | Yes IEC 60947-1 |
| Power dissipation per pole | 1.8 W | Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-3 415 V In<br />100000 cycles AC-3e 415 V In | Rated duty | Continuous IEC 60947-4-1 |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal | Fixing mode | 35 mm symmetrical DIN rail clipped<br />Panel screwed with 2 x M4 screws) |
| Mounting position | Horizontal<br />Vertical | Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) | Depth | 3.8 in (97 mm) |
| Net Weight | 0.73 lb(US) (0.33 kg) | color | Dark grey |
| Standards | EN/IEC 60947-2<br />EN/IEC 60947-4-1<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1<br />IEC/EN 60335-2-40:Annex JJ | Product Certifications | CCC<br />UL<br />CSA<br />EAC<br />LROS (Lloyds register of shipping)<br />BV<br />RINA<br />DNV-GL<br />UKCA<br />IECEE CB Scheme |
| IK degree of protection | IK04 | IP degree of protection | IP20 IEC 60529 |
| Climatic withstand | IACS E10 | Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 | Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Mechanical robustness | Shocks 30 Gn for 11 ms<br />Vibrations 5 Gn, 5...150 Hz | Operating altitude | 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
