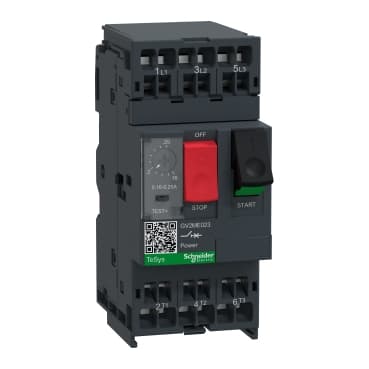

GV2ME023
Product ID:29732
Updated: 2026/4/3
Key Features
- 1Provide thermal-magnetic protection for 1/12HP motors. 2、Enable easy start-stop control via push-button actuator. 3、Ensure reliable protection with 100 kA interrupt rating. 4、Meet IEC, UL, CSA, CCC, EAC, Marine, ATEX standards. 5、Simplify installation with compact DIN rail design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys Deca | Product name | TeSys GV2 |
| Product or Component Type | Motor circuit breaker | Device short name | GV2ME |
| Device Application | Motor protection | Trip unit technology | Thermal-magnetic |
| Poles description | 3P | Network type | AC |
| Utilisation category | Category A IEC 60947-2<br />AC-3 IEC 60947-4-1<br />AC-3e IEC 60947-4-1 | Network frequency | 50/60 Hz IEC 60947-4-1 |
| Motor power kW | 0.06 kW 400/415 V AC 50/60 Hz | Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 440 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 500 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2<br />100 % 400/415 V AC 50/60 Hz IEC 60947-2<br />100 % 440 V AC 50/60 Hz IEC 60947-2<br />100 % 500 V AC 50/60 Hz IEC 60947-2<br />100 % 690 V AC 50/60 Hz IEC 60947-2 | Control Type | Push-button |
| Line Rated Current | 0.25 A | Thermal protection adjustment range | 0.16…0.25 A IEC 60947-4-1 |
| Magnetic tripping current | 3.08 A | [Ith] conventional free air thermal current | 0.25 A IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 | [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 | Phase failure sensitivity | Yes IEC 60947-4-1 |
| Suitability for isolation | Yes IEC 60947-1 | Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles | Electrical durability | 100000 cycles AC-3 415 V In<br />100000 cycles AC-3e 415 V In |
| Rated duty | Continuous IEC 60947-4-1 | Fixing mode | 35 mm symmetrical DIN rail clipped<br />Panel screwed with adaptor plate) |
| Mounting position | Horizontal<br />Vertical | Width | 1.8 in (45 mm) |
| Height | 4.0 in (101 mm) | Depth | 3.09 in (78.5 mm) |
| Net Weight | 0.62 lb(US) (0.28 kg) | color | Dark grey |
| Standards | EN/IEC 60947-2<br />EN/IEC 60947-4-1<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1<br />IEC/EN 60335-2-40:Annex JJ<br />IEC/EN 60335-1:Clause 30.2 | Product Certifications | CCC<br />UL<br />CSA<br />EAC<br />ATEX<br />LROS (Lloyds register of shipping)<br />BV<br />RINA<br />DNV-GL<br />UKCA |
| IK degree of protection | IK04 | IP degree of protection | IP20 IEC 60529 |
| Climatic withstand | IACS E10 | Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 | Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Mechanical robustness | Shocks 30 Gn for 11 ms<br />Vibrations 5 Gn, 5...150 Hz | Operating altitude | 6561.68 ft (2000 m) |
