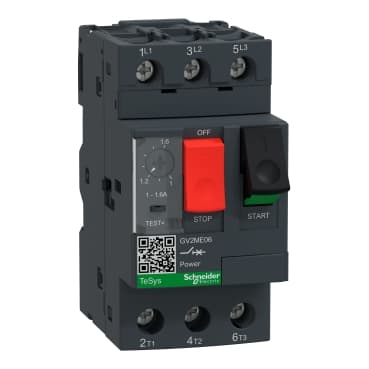

GV2ME06
Product ID:29742
Updated: 2026/7/14
Key Features
- 1Optimize panel space with a compact 45mm width design.
- 2Protect motors reliably with thermal-magnetic protection up to 100kA Icu.
- 3Adjust the trip setting from 1A to 1.6A for precise protection.
- 4Ensure global compliance with IEC, UL, CSA, CCC, and EAC certifications.
- 5Simplify installation using the GV2AF3 adapter for combination starters.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys Deca | Product name | TeSys GV2 |
| Product or Component Type | Motor circuit breaker | Device short name | GV2ME |
| Device Application | Motor protection | Trip unit technology | Thermal-magnetic |
| Poles description | 3P | Network type | AC |
| Utilisation category | Category A IEC 60947-2<br />AC-3 IEC 60947-4-1<br />AC-3e IEC 60947-4-1 | Network frequency | 50/60 Hz IEC 60947-4-1 |
| Motor power kW | 0.37 kW 400/415 V AC 50/60 Hz<br />0.55 kW 400/415 V AC 50/60 Hz<br />0.37 kW 500 V AC 50/60 Hz<br />0.55 kW 500 V AC 50/60 Hz<br />0.75 kW 500 V AC 50/60 Hz<br />0.75 kW 690 V AC 50/60 Hz<br />1.1 kW 690 V AC 50/60 Hz | Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 440 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 500 V AC 50/60 Hz IEC 60947-2<br />100 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2<br />100 % 400/415 V AC 50/60 Hz IEC 60947-2<br />100 % 440 V AC 50/60 Hz IEC 60947-2<br />100 % 500 V AC 50/60 Hz IEC 60947-2<br />100 % 690 V AC 50/60 Hz IEC 60947-2 | Control Type | Push-button |
| Line Rated Current | 1.6 A | Thermal protection adjustment range | 1…1.6 A IEC 60947-4-1 |
| Magnetic tripping current | 26.2 A | [Ith] conventional free air thermal current | 1.6 A IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 | [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 | Phase failure sensitivity | Yes IEC 60947-4-1 |
| Suitability for isolation | Yes IEC 60947-1 | Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles | Electrical durability | 100000 cycles AC-3 415 V In<br />100000 cycles AC-3e 415 V In |
| Rated duty | Continuous IEC 60947-4-1 | Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail clipped<br />Panel screwed with adaptor plate) | Mounting position | Horizontal<br />Vertical |
| Width | 1.8 in (45 mm) | Height | 3.5 in (89 mm) |
| Depth | 3.09 in (78.5 mm) | Net Weight | 0.57 lb(US) (0.26 kg) |
| color | Dark grey | Standards | EN/IEC 60947-2<br />EN/IEC 60947-4-1<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1<br />IEC/EN 60335-2-40:Annex JJ<br />IEC/EN 60335-1:Clause 30.2 |
| Product Certifications | CCC<br />UL<br />CSA<br />EAC<br />ATEX<br />LROS (Lloyds register of shipping)<br />BV<br />RINA<br />DNV-GL<br />UKCA | IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 | Climatic withstand | IACS E10 |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) | Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) | Mechanical robustness | Shocks 30 Gn for 11 ms<br />Vibrations 5 Gn, 5...150 Hz |
| Operating altitude | 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
