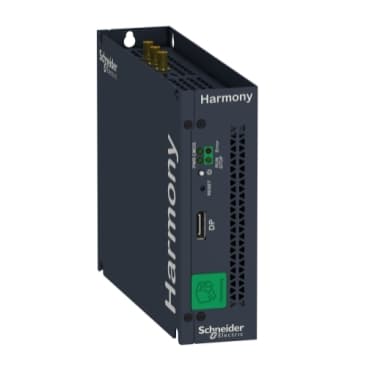

HMIBMIEA5DD100A
Product ID:29883
Updated: 2026/4/3
Key Features
- 1Optimize space with a compact design for constrained industrial environments. 2、Enable robust connectivity via DisplayPort, Ethernet, COM1, and USB ports. 3、Power applications reliably using the Intel Atom E3930 processor. 4、Enhance system security with TPM hardware encryption and UEFI. 5、Adapt installations with flat, wall, or book mounting options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Modular box PC |
| Device short name | Modular BOX PC basic Optimized | Range Compatibility | IDisplay<br />Modular Display HMIDM |
| Accessory / separate part destination | PC panel HMIDM modular display | Processor name | Intel Atom E3930 upto 1.8 GHz |
| Software package | Node-RED and system nodes restore IIoT Wiring Operating System Restore<br />McAfee white listing installer cyber security license not included<br />EcoStruxture secure connect advisor annual subscription cyber security license not included<br />EcoStruxure Operator Terminal Expert run time HMI license not included<br />EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only<br />EcoStruxure augmented operator advisor server augmented operator license not included | Mounting Location | Book mounting<br />Flat mounting<br />Wall mounting |
| Data storage equipment | 128 GB eMMC (soldered) | Memory description | 4 GB RAM DDR3 internal not expandable) |
| Number of slots | 1 slot(s) for mini PCI Express full-size with optional interface plate, | Number of slots available for expansion | 1.0 mini PCIe |
| Display resolution | 3200 x 2000 pixels at 60 Hz | Watchdog timer | 1…255 ms |
| Type of cooling | Fanless | Electrical connection | Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom<br />Connector, connector type: SMA, 3 ways - location: top |
| Integrated connection type | Display port 1 front<br />Ethernet 2 RJ45 Realtek 8111G 10/100/1000 Mbps bottom IEEE 1588 not supported<br />COM1 serial link battery backup 1 male SUB-D 9 RS232/422/485 bottom non-isolated<br />USB 2.0 port 1.0 USB type A 480 Mbit/s bottom<br />USB 3.0 port 1.0 USB type A 5 Gbit/s bottom<br />TPM connector Ver 2.0 cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed motherboard | Cyber secured boot | Secure password boot UEFI |
| [Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply | Supply voltage limits | 9.6…28.8 V |
| Inrush current | 2.03 A | Power consumption in W | 20.0 W box)<br />15.0 W with 4:3 12" display HMIDM6421)<br />16.0 W with Wide 12" display HMIDM6521)<br />17.0 W with 4:3 15" display HMIDM7421)<br />19.0 W with Wide 15" display HMIDM7521)<br />20.0 W with Wide 19" display HMIDM9521)<br />21.0 W with Wide 22" display HMIDMA521) |
| Control type | ON/OFF button | Impregnation material | Conformal coated |
| Main type | Basic Optimised | Depth | 1.8 in (46 mm) |
| Height | 5.9 in (150 mm) | Width | 7.4 in (187 mm) |
| Net Weight | 2.6 lb(US) (1.2 kg) | Standards | Class A group 1 EN 55011<br /> EN 61000-6-4<br /> EN 61131-2<br /> FCC part 15<br /> UL 60950 |
| Product certifications | CE<br />CULus<br />UL 60950 for IT equipments<br />EAC<br />CCC<br />RCM | Quality labels | CE |
| Directives | 2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive | IP degree of protection | IP40 IEC 60529 |
| Electromagnetic compatibility | Immunity to high frequency interference conforming to IEC 61000-4<br />Disturbing field emission class A conforming to EN 55011<br />Conducted and radiated emissions class A conforming to EN 55022 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 |
| Relative Humidity | 10…95 % non-condensing EN/IEC 60068-2-30 | Ambient air temperature for operation | 32…122 °F (0…50 °C) by default) EN/IEC 60068-2-2<br />32…122 °F (0…50 °C) flat mounting<br />32…113 °F (0…45 °C)mini PCIe<br />32…113 °F (0…45 °C) flat mountingmini PCIe |
| Operating altitude | 6561.68 ft (2000 m) EN/IEC 60664-1 | Vibration resistance | 2 gn 5…500 Hz) eMMC |
Specifications may be subject to change without notice
