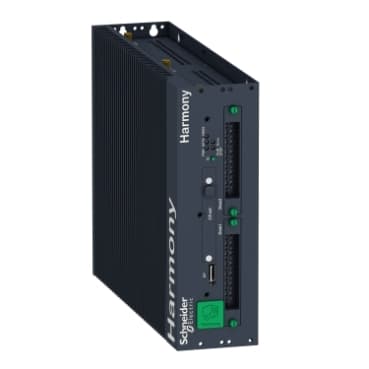

HMIBMPHI74D2801
Product ID:29899
Updated: 2026/4/3
Key Features
- 1Power your HMI with a high-performance Intel Core i7 4650U processor. 2、Expand system capabilities using two available mini PCIe slots. 3、Ensure seamless integration with modern Windows 10 operating systems. 4、Connect to diverse peripherals via USB 2.0, USB 3.0, Ethernet, and COM1 ports. 5、Enhance cybersecurity and data protection with the integrated TPM module.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Modular box PC |
| Device short name | Modular BOX PC Performance | Range Compatibility | Modular Display HMIDM<br />IDisplay |
| Accessory / separate part destination | PC panel HMIDM modular display | Processor name | Intel Core i7 4650U 1.7 GHz turbo boost at 3.3 GHz |
| Chipset type | Intel QM87 | Video controller type | Intel HD Graphics 5000 |
| Operating system | Windows 10 IoT Enterprise 64 bit switched from Windows 8.1 in Q1 2018)multi-language | Software package | Node-RED and system nodes restore IIoT Wiring Operating System Restore<br />McAfee white listing installer cyber security license not included<br />EcoStruxture secure connect advisor annual subscription cyber security license not included<br />EcoStruxure Operator Terminal Expert run time HMI license not included<br />EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only<br />EcoStruxure augmented operator advisor server augmented operator license not included |
| Mounting Location | Book mounting<br />Wall mounting<br />Flat mounting | Data storage equipment | 500 GB enterprise hard disk |
| Memory description | 8 GB RAM DDR3 internal not expandable)<br />512 KB MRAM internal | Free slots | 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount hot swap RAID with Intel Rapid Storage Technology<br />1 CFast<br />1 mSATA |
| Number of slots | 2 slot(s) for mini PCI Express full-size | Number of slots available for expansion | 2 mini PCIe |
| Display resolution | 3200 x 2000 pixels at 60 Hz | Watchdog timer | 1…255 ms |
| Type of cooling | Fanless<br />Fan required to mount PCI/PCIe cards above 3 W | Electrical connection | Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom<br />Connector, connector type: SMA, 3 ways - location: top |
| Integrated connection type | Display port 1 bottom<br />Display port 1 front<br />Ethernet 2 RJ45 I210 10/100/1000 Mbps bottom IEEE 1588 supported<br />COM1 serial link battery backup 1 male SUB-D 9 RS232/422/485 bottom<br />USB 2.0 port 2 USB type A 480 Mbit/s bottom<br />USB 3.0 port 2 USB type A 5 Gbit/s bottom<br />TPM connector Ver 1.2 cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed motherboard | [Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply |
| Supply voltage limits | 18…36 V | Inrush current | 8.9 A |
| Power consumption in W | 40.0 W box)<br />44.0 W with 4:3 12" display HMIDM6421)<br />43.0 W with Wide 12" display HMIDM6521)<br />45 W with 4:3 15" display HMIDM7421)<br />46 W with Wide 15" display HMIDM7521)<br />48 W with Wide 19" display HMIDM9521)<br />51 W with Wide 22" display HMIDMA521) | Control type | ON/OFF button |
| Main type | Performance | Depth | 2.6 in (65.2 mm) |
| Height | 8.1 in (207 mm) | Width | 10.0000000000 in (254 mm) |
| Net Weight | 6.8 lb(US) (3.1 kg) | Standards | Class A group 1 EN 55011<br /> EN 61000-6-4<br /> EN 61131-2<br /> FCC part 15<br /> UL 61010 |
| Product certifications | CE<br />CULus<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />ATEX<br />CCC<br />RCM<br />Marine GL Bridge<br />EAC<br />IEC Ex hazardous locations 3GD zone 2/22 | Quality labels | CE |
| Directives | 2006/95/EC - low voltage directive<br />2004/108/EC - electromagnetic compatibility | IP degree of protection | IP40 IEC 60529 |
| Electromagnetic compatibility | Immunity to high frequency interference conforming to IEC 61000-4<br />Disturbing field emission class A conforming to EN 55011<br />Conducted and radiated emissions class A conforming to EN 55022 | Ambient air temperature for storage | -22…158 °F (-30…70 °C) IEC 60068-2-2<br />-22…158 °F (-30…70 °C) IEC 60068-2-14 |
| Relative Humidity | 10…95 % non-condensing EN/IEC 60068-2-30 | Ambient air temperature for operation | 32…131 °F (0…55 °C) by default) EN/IEC 60068-2-2<br />32…122 °F (0…50 °C) flat mounting EN/IEC 60068-2-2<br />32…113 °F (0…45 °C)PCI/PCIe HMIDM modular display with HDD EN/IEC 60068-2-2<br />32…104 °F (0…40 °C) flat mountingHDD<br />32…104 °F (0…40 °C) flat mountingmini PCIe<br />32…104 °F (0…40 °C) flat mountingPCI/PCIe<br />32…113 °F (0…45 °C) 2mini PCIe HMIDM modular display EN/IEC 60068-2-2 |
| Operating altitude | 6561.68 ft (2000 m) IEC 60664-1 | Vibration resistance | 2 gn 5…500 Hz) SSD or CFast<br />1 gn 5…500 Hz) HDD |
Specifications may be subject to change without notice
